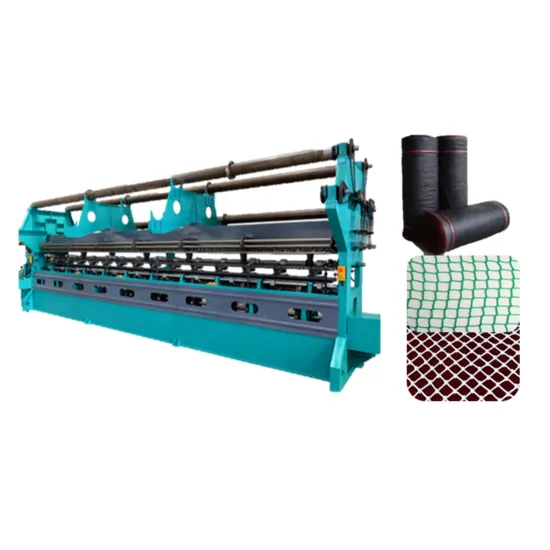

Double Needle Bar Raschel Warp Knitting Machine
| US$26,000.00-30,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
ZYTT 291
Computerized
Computerized
Precision
Warp Knitting
Certification
ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
After-sales Service
One Year Warranty
Needle Type
Individual Latch Needle
Gauge
E2 E3 E4 E6 E9 E12 E18 E22 E24
Working Width
90′′ 170′′ 195′′ 220′′ 260′′ 340′′ 240′′ 260′′ 340
Transport
Sea Transport
Product
Warp Knitting Machine
Fabric Product
Net,Fishing Net
Speed
600rmp
Number of Bars
2bar 3bar 4bar 5bar 6bar 7bar
Transport Package
According to Customer Requirements
Specification
35 square meters
Trademark
ZYTT
Origin
Jiangsu
HS Code
8447201100
Production Capacity
1000
Product Description
WUXI ZHONGYIN TEXTILE TECHNOLOGY.,LTD
Our company was founded in 2012, but we have 20+ years of machinery production capacity and export experience ZYTT on textile machinery business. We have presence in Asia,United States, Europe,Africa.
Our advantage lies in high quality pre-sale & after-sales service, first hand high quality factory price, strong team strength. One-to-one information handover solves all your problems.
Product Description
| Machine Model Dimension | Specification | Floor Area(M2) | Weight(KG) | Maine Motor | Slow moving/Winding Motor | Speed(row/minute) |
| ZYTT-291-90'' | 3800x2300x2600 | 9.6 | 8000 | 4 | 0.75 | 350-600 |
| ZYTT-291-170'' | 5600x2300x2600 | 13.6 | 9500 | 4 | 0.75 | 350-550 |
| ZYTT-291-195'' | 6500x2300x2600 | 15.6 | 9800 | 4 | 0.75 | 350-550 |
| ZYTT-291-220'' | 7600x2300x2600 | 18.24 | 10000 | 5.5 | 0.75 | 350-550 |
| ZYTT-291-240'' | 7900x2300x2600 | 18.96 | 11000 | 5.5 | 0.75 | 350-550 |
| ZYTT-291-260'' | 8300x2300x2600 | 20 | 12000 | 5.5 | 0.75 | 350-550 |
| ZYTT-291-340'' | 10800x2300x2600 | 24.84 | 16000 | 5.5 | 1.5 | 350-550 |
Needle Type: Latch Needle
Gauge: E2 E3 E4 E6 E9 E12 E18 E22 E24
Working Width: 0'' 170'' 195'' 220'' 260'' 240'' 340''
Number of bars: 2bar 3bar 4bar 5bar 6bar 7bar
Shogging mode: Chain block shogging, pattern cam shogging, EL/electronic shogging
Let-off Manner: EBC, EBA
Take-up Manner: Independent
Maximum speed: 600RPM
Detailed Photos
FAQ
Q Products price and discount:A Wesupport customization.Pls feel free to tell us machiner details you wanted. You will get our reply in 24 hours Q Delivery timeA Normally 30 days after deposit.lf the machine you need is in stock,we can ship it shortly. Q Machine warrantyA One year.For any spare part,the customer can purchase from us for life. Q Logistics costAThe freight depends on weight,packing size,and your country or region,etc Q After sales serviceA Online service and we offer factory trained servicemen for machine start upoperator/maintenance training and repair service. Q Choose mechanical equipmentA Our professional team will give you the best suggestion as long as you tell us what kind of product you need to do and the required specification Q More questionA Please feel free to contact
