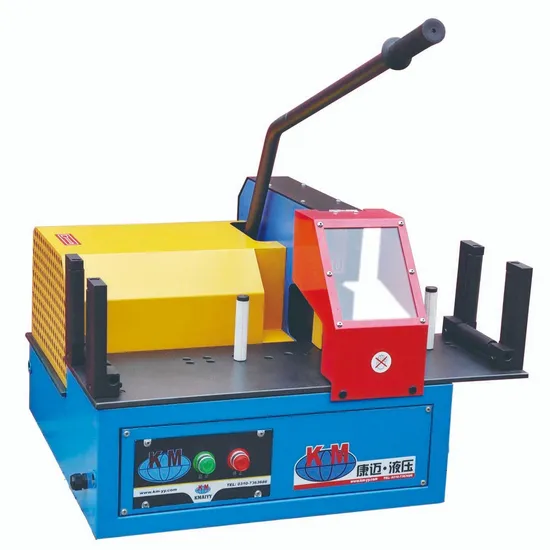

Hose Cutter Hose Cutting Machine for Hydraulic Hose Uniflex Blade

Product Description

The blade imported from Germany has longer service life. Recessed blade and guards for the operator's safety.
* TECHNICAL DATA OF HOSE CUTTING MACHINE*

Type	KM-S350B
Working range	6 mm-51 mm
Hose size	2 inch
Standard voltage	380V
Motor power	3 kW
Blade O.D	350 mm
Range	125 mm
Speed	2900r/min
Dimensions (mm)	700*700*600mm
Weight with out oil	95 kg
Noise level	50
Back limit switch	-
Web camera	-

* ADVANTAGES OF HOSE CUTTING MACHINE *
- Special cutting blade, no dust
- The new structure, for the security of the operator
- Special motor, for reliable usingKM-S350B is our supporting equipment used for hose assembly. Its gearless blade can prevent the steel reinforcement layer from damaging. The enclosed tank reduces the dust diffusing while working, the reserved suction opening is available for exhaust to collect rubber dust. The protective cover can avoid dust diffusing. The manual connecting rod is easy and rapid to operate, and the press bar will return automatically after finishing because of the spring. The pillars on the flat can be adjusted to the length of hose, the arcuate bend can prevent blade from being clamped by hose. This machine is flexible and easy to move, it's your first choice.
We will do our best to provide you the most satisfactory product and service!
OperationMachine storage:Open the package, and place the machine in the ventilation and dry house where the temperature is above 10ºC.Electrical wire connection: The machine voltage is 380V*50HZ (A.C.). The diameter of wires must ≥2.5mm², and the machine must be grounded firmly. Please wire following the indication or consult to professional electrician.Motor rotation direction: After the wires are right connected, press the "start button" to start the motor, keep the motor rotation direction consistent with the arrow showed.
Direction adjusting method:
Turn the power off, and change any two live wires.
After the above preparation work is finished, you can cut hose as follows:
Measure the hose length L according to demand, and mark it
Lift the protective cover, and put in the hose from the front, please make the marked point coincide with the blade cutting edge.
Adjust the the pillar length L as per the hose size, to keep the hose is fed in arc, which is easier to operate.
After finish the adjustment work above, you can cut hoses in batch.
Notice: There will be some tiny cracks after period of work, don't worry, it's normal, no need to change the blade.
MaintenanceCheck the blade regularly, if swing, please stop working.Regularly clean up the press bar and pulling arm, and keep them lubricated.Repair the cutting edge with whetstone once it is abraded.If the blade is too abraded to work, please replace in time.Periodic clean the machine, to keep it clean.
People from all works of life chose our hose cutting machine.
Our factory is located in Wangzhuang village, Shangcheng Town,Cheng'an County, Handan City,Hebei Province, China. Here the birds are singing and the flowers are fragrant.
We are warmly welcome friends from all over the world to visit our company.
Our company uses a variety of high-precision processing equipment, and every year will update the equipment.
Strict management, orderly arrangement and meticulous work spirit.
We arrend many exhibitions every year.The show attracts visitors from all over the world. We got a lot of consultation from the show.
Our company has passed ISO9001, SGS and CE certification.
Well, so many suppliers, why you should choose us?
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1.Kangmai hose crimping machine CE& ISO PATENT Approved and SGS Audited.1/4
2.The fitting and hoses crimped by kangmai machine never leakage the oil and never broken.The reason like below:
(a)The machine head process by CNC machine,roundness and taper is within 0.1mm.
(b)The machine die base and dies adopt special die steel and process by advanced craft, the hardness is above 55 HRC.The die hardness is enough so that the die life is very long and easy to crimping high pressure hydraulic hose, 4SP even 6SP.
(c) The technical of machine head is forging or casting.Casting is cheap but has small hole on machine head.The piston will divide from casting machine head.
3.Strictly testing and inspetion.
(A) for raw material, we will check again by our inspector as per international standard.Only the raw material reach to international standard and allow enter kangmai facotry.
(B) for hydraulic and eletrical parts, such as valve, pump, motor and so on, we use famous brand both from China and abroad.However, we will check again when these parts enter our facotry.
(C) before the hose crimping machine enter our warehouse, the inspector check the machine roundess, taper, opening, speed, noise, apprance and so on.Only each parts is up to standard of ISO, CE standard, the machine can enter the warehouse.
(D) when the machine package, the inspector the dies, the package and other parts of clients requriment.Everything is ok, the inspector signed and machine allow to go out the facotry.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
