4lz-5.0QC Rice/Wheat/Grain/Paddy Multifunctional Combine Harvester

Product Description

4LZ-5.0QC Rice/Wheat/Grain/Paddy Multifunctional Combine Harvester
1. Why choose us?
FOTMA is the leading and professional supplier in China for rice & wheat mini combine harvester!
FOTMA has over than 17 years experience with combine harvester and agricultural machine!
FOTMA can supply the best price and professional service!
FOTMA has good reputation with all world customers!
FOTMA is 13 year Gold Member at Made In China!
2. Product description
Our combine harvesters are high working efficiency and low cost, which is strong power, simple operation, more peace of mind, excellent quality, better durability, large and fast feeding and harvesting.
3. Characteristics
1. The imported HST gearbox is adopted, tailored and specialized for this model to achieve reasonable matching.
2. Equipped with a high-powered engine, giving a strong driving force.
3. Equipped with a wide-swath header, able to achieve large feeding operation.
4. Features
1.Equipped with high-quality engine of 110 horse power, giving a strong driving force;
2.Automatically 270°Hydraulic unloading type to improve working efficiency; Rotary grain tank, easy for maintenance;
3.Equipped with luxury cab with air conditioner;
4.With large cutting width of 2500mm, and 600mm wider paddy field track, better pass ability;
5.Simple operating console, hydraulic chassis driving system.
6.Equipped with double pump and motor, more easy for steering and transmission.
5. Technical parameters

Model		4LZ-5.0QC
Feed capacity(kg/s)		5.0
Dimension(L*W*H)(mm)		4880*2520*2840
Weight(kg)		2750
Engine
Type		4-cylinder in-line water cooling
Rated power(hp)		88/95/100
Speed(r/min)		2400
Fuel		Diesel
Fuel consumption(kg/hm²)		≤32
Drive system
Track	Specification	90 mm× 52section× 450mm
	Track gauge	1150
Min. ground clearance(mm)		310
Transmission		Mechanical + stepless hydraulic speed regulating (HST)
Number of shifting positions		Stepless speed
Walking speed(km/h)		0-5.8
Cutting
Reel	Type	Eccentric drawing-tooth
	Diameter	900
Cutting width(mm)		2000
Blade width(mm)		2000
Header auger		Spiral blade+Eccentric telescopic rod rack
Grain unloading
Grain unloading method		Hydraulic automatic
Grain Tank(m³)		1.1

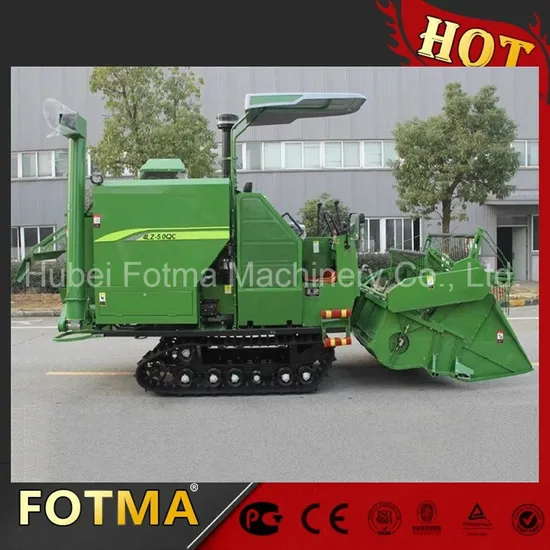

6. Photos
7. Payment
If you would like to get an offer or place an order, Contact us with the products name, model, quantity desired or a description if not listed in our website. All of our prices are for dealership based on wholesale purchase. We offer various payment options such as Wire Transfer (T/T), Letter of Credit at sight, Paypal, Westunion etc.
8. Shipping
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
