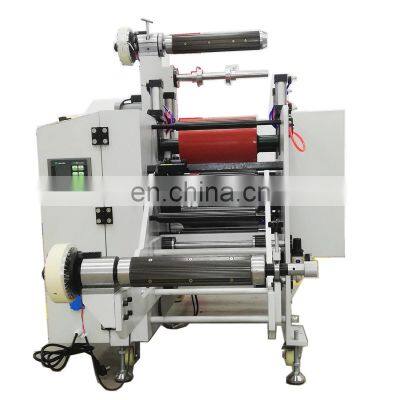

automatic laminating machine with auto unwinding rewinding for narrow fabric scroll

Product Description

Product Description
Product DescriptionSpecificationFeatures:1.The working width up to 320mm/420mm.2.Laminating thickness up to 5mm.3.the laminating positioning precision can reach 0.1mm.(can laminating many strips at one time).4.Unwinding and rewinding with 3 inch pneumatic compressed shaft .5.With movable feet design, it can be moved and used conveniently.6.The laminating tension is totally controlled by magnetic power ,it make sure the flatness of the laminating material.7.Automatic stop sensor for unwinding and rewinding.8.Each parts independently speed control,tension control,easy to operate.9.Each pair laminating rollers can be adjusted separately to get right pressure and space.10.Multiple sets of waste discharge shaft. Application:This machine is suitable for peeling and laminating kinds of protective film, released film, paper and adhesive tapes. It's specialized for the optical films and coated film industry. Such as the OCA film, ITO film, PET film, diffusion film,reflecting film, hard coated film, AB gule etc. * Optional device for this machine:1.Integrated discharge device(jumbo roll loading device). Save working space.2. Shaftless loading device. Compact structure ,easy operation.3. Rewinding differential shaft. Make better rewinding.4. Heating system for laminating. According to different type materials requirement.5. Slitting device. Do both slitting and laminating in same unit.6. Seperate rewinder for waste.Reduce material pollution.itemvalueApplicable IndustriesPrinting Shops, automatic laminating machineShowroom Locationautomatic laminating machineConditionNewTypeLaminating MachineComputerizedYesPlace of OriginChinaJiangsuBrand NameDapengVoltage220VDimension(L*W*H)1370*1260*1270mmWeight500kgWarranty1 YearProduction Capacity60 m/minKey Selling PointsEasy to OperateMax. workable width420mmMachinery Test ReportProvidedVideo outgoing-inspectionProvidedMarketing TypeOrdinary ProductWarranty of core components1 YearCore ComponentsMotor, PLCPLC BrandMITSUBISHI, SiemensPAPER ROLL MAX WIDTH420/650MMMax feeding paper roll diameter500mmlaminating speed60m/minlaminating precise±0.3mmCompany Profile
