Zkj Continuous Vacuum Feeder Large Capacity Vacuum Conveyor

Product Description

ZKJ Continuous Vacuum Feeder Large Capacity Vacuum Conveyor Product Description
ZKJ Continuous Vacuum Feeder Large Capacity Vacuum Conveyor unit utilizes a vortex air pump to extract air, creating a vacuum state within the material suction nozzle and the entire system. The material is drawn into the suction tube along with the surrounding air, forming a flow of material-laden air. Subsequently, it reaches the hopper, where the separation of air and material takes place. The separated material then enters the receiving device. Unloading and discharging are achieved continuously by airlock rotary valve.
The vacuum feeder unit is equipped with a compressed air reverse blow device. During each material discharge, compressed air pulses are used to blow off any powder adhering to the surface of the filter, ensuring the proper functioning of the material absorption process.The system ensures clean and contamination-free transfer, making it suitable for industries like chemical and food processing.
Structure
Product Details
Main features:
01 PNEUMATIC VACUUM AIRTIGHT CONVEYING
Airtight transportation of various powder and particles materials. The conveying process is airtight and no powder leakage.
02 REDUCE DUST ENVIRONMENTAL POLLUTION
Improve the working environment, reduce environmental and personnel pollution to materials and improve cleanliness.
03 OCCUPY LESS SPACE
It occupies a less space compared with other conveyors, and can complete the powder conveying in a narrow space, not limited by the distance.
04 SAFE MATERIAL TRANSFER
Safe material transfer and gentle damage free conveying. Optimum hygiene conditions and accord with GMP standard.
05 ELECTRONIC CONTROL SYSTEM REAL-TIME MONITORING
PLC connection control system can be used. It can switch between manual and automatic modes at any time.
Product Show

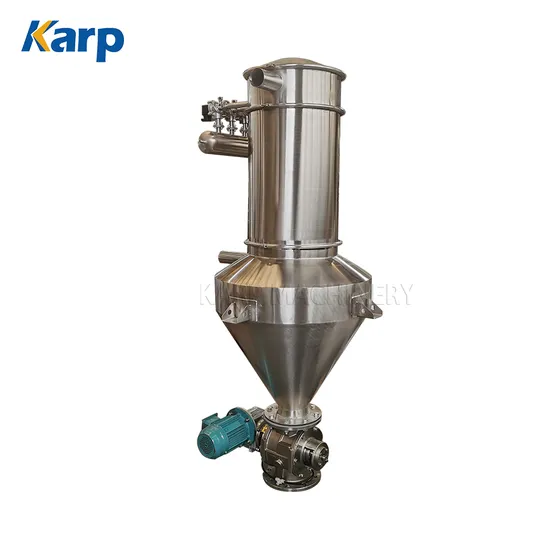

Vacuum conveyor with rotary airlock valve, discharging continuously
Vacuum conveyor feeding to vibrating screen We support customization to fit your needs.
Can be used with adapters and hopper for higher conveying efficiency
Product Parameters

Model	Power (KW)	Hopper volume (L)	Air pressure (Mpa)	Capacity (kg/h)
ZKJ-1	1.5	12	0.4-0.6	100-300
ZKJ-2	2.2	12		200-600
ZKJ-3	3	18		300-1200
ZKJ-4	5.5	40		1200-2500
ZKJ-6	5.5	40		1500-3200
ZKJ-7	7.5	90		3000-6000
ZKJ10-6	7.5	110		3000-6000
ZKJ20-5	11	300		3000-6000

Note: The conveying capacity is measured when the conveying tube is 4 meters long and the conveying material is flour. The longer the conveying tube is, the lower the conveying capacity is, and the conveying capacity is also greatly related to the characteristics of the material. If you would like know more details, please contact us by clicking on the image below!
Application Fields
Our vacuum conveyor can directly feed to crusher, packaging machine, ribbon mixer, vibrating screen and filling machine. We provide one-stop service of screening, conveying, feeding and dumping.

Application Details: 1. Food and Beverage Industry: Conveying food additives, powdered ingredients, and granular materials in food production and processing. 2. Chemical Industry: Handling and conveying chemical powders, additives, and raw materials for various chemical processes. 3. Plastic Industry: Transporting plastic pellets, powders, and additives for plastic production and molding. 4. Grain processing industry: Transferring grains, flour, and feed ingredients.
Customer onsite pictures:

Our related products:
Packaging & Delivery

Packing for ZKJ Continuous Vacuum Feeder Large Capacity Vacuum Conveyor.
- Outside package: standard export wood box. - Inner package: stretch film for machine, accessories in carton. Company Profile

Xinxiang KARP Machinery Equipment CO., Ltd is one of leading manufacturers of vibrating screen sifters, conveying machines, feeding machines, elevating machines and related products with 11 years designing and manufacturing experiences. We are committed to solving all screening and conveying problems of bulk materials. Depending on the quality of the life of the enterprise, we will with professional solutions, high quality products, perfect service to win our customers' identity. Our main products are vibrating screen, round separator, rectangular separator, drum screen, gyratory screen, tumbler screen, screw conveyor, belt conveyor, vacuum conveyor (ZKJ Continuous Vacuum Feeder Large Capacity Vacuum Conveyor), vibration table, standard laboratory inspection sieve, bucket elevator, vibration elevator, vibration motor, vibrating conveyor, feeding machine and related parts. All of our products are widely used in food, chemical, metallurgy, building materials, mining, environmental protection and other fields.
We warmly welcome friends from all over the world to our company, we are looking forward to sincere cooperation and mutually beneficial development with you.
Why Us - Our quality can be found in our products. - Our perfect production system and sales system ensure fast and efficient service. - Our skilled design team is ready to serve you by customizing machines to fit your needs. - Our After-Sales Team is always glad to answer questions regarding your specific application.
CE-Certificates
FAQ
1. Can I customize my product?
Sure, we have our own R&D department to offer customization service for you.
2. How long is your production time?
A set of equipment takes 15-20 working days, and more than 1 set takes about 20-25 working days.
3. How long is your warranty?
A 13-month warranty ensures you have no worries.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, EXW;
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T, L/C, PayPal, Western Union;
Each product undergoes strict quality control before shipping, so please rest assured.
If you are interested in our ZKJ Continuous Vacuum Feeder Large Capacity Vacuum Conveyor, please let us know the following information, so that we can offer you an accurate solution:
1. What's the raw material information? And its specific gravity? Is it easy to flow?2. What's the feeding distance? (Height of discharge __meters? And the horizontal conveying length ___meters?)3. Which equipment does the vacuum feeder suck materials from and feed to?
4. Capacity __kg/h?
