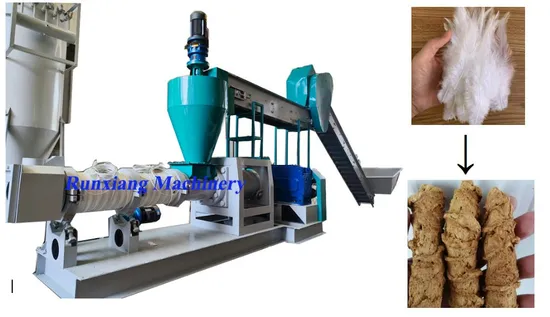

Large Multifunctional Chicken Duck Feather Puffing Machine for Sale

Product Description

Feather Puffing Machine is a type of extruder machine that is used to make various types of feed pellets. It is designed to extrude different types of feathers, such as chicken feathers, duck feathers, and goose feathers, to produce high-quality feed pellets for animals. The machine is widely used in the poultry and livestock industries.
Working Principle of Feather Extrusion Machine
Feather Extrusion Machine works by extruding the raw materials through a die to produce feed pellets. The raw materials are first crushed into small particles and then mixed with water and oil in the mixer. The mix is then passed through the conditioner to soften it. The mixture is then fed into the extruder, where it is compressed and heated under high pressure and temperature until it becomes soft and plastic. The softened mixture is then forced through a set of rotating knives that cut it into small pieces, which are then cooled with air or water to form a solid pellet.
Structural features of Feather Puffing Machine
1. The machine has a compact structure and some unnecessary parts are gradually removed, which enhances the reliability and service life of the machine.
2. The machine adopts an advanced steam heating system, which allows water and steam to be fully mixed, improving processing efficiency.
3. Machine surface Coated with heat-resistant coating, it can effectively resist high temperature and corrosion, and also protect the safety of personnel working on the machine.
4. The control system of the machine adopts advanced PLC control system technology, which can be adjusted according to different processing needs. Make precise temperature and pressure adjustments to suit different processing processes.
Advantages of Feather Puffing Extruder
1. High Efficiency: Feather Puffing Machine has high efficiency in producing feed pellets, with a production capacity ranging from 100kg to 1000kg per hour.
2. Easy to Operate: The machine is easy to operate and maintain, with a user-friendly interface. Its operators can easily control the temperature and pressure, and adjust them according to the specific needs of the materials.
3. Low Energy Consumption: Feather Puffing Machine requires low energy consumption due to its advanced technologies and optimized designs .
4. High Quality Output: The machine produces high-quality feed pellets that are rich in nutrients, uniformly shaped, and easy to digest for animals.
Application scope of Feather Puffing Machine
Feather Feed Extruder Machine is mainly used in the production of feed pellets for poultry and livestock. Its primary application is in the poultry and livestock industries, where it is used to produce high-quality feed pellets that are rich in nutrients and easy to digest for animals.
Table of parameters

Model	Specification
RX-135-B	Main motor:45kw Elevator motor:2.2kw Heating power:16kw Cutting power:1.5kw Capacity:200-300kg/h Dimension:3500*2020*2350mm Elevator:350*800*2100mm Weight:2400kg
RX-200-B	Main motor: 75kw Elevator motor:3.0kw Heating power:23kw Capacity:350-450kg/h Dimension:3580*2200*1050mm Elevator:4850*800*2100mm Weight:3500kg

Feather Puffing Machine precautions
1. Long-term work. Since this type of machine takes a long time to heat up, high-pressure steam and temperature are required during operation. Pay attention to whether the processed materials will burn or explode.
2. Cleaning and maintenance. Machine Keep it dry and clean to avoid water or dirt accumulating in the machine and causing adverse effects on the machine.
3. Repair and maintenance. After long-term use, some problems such as ventilation, leakage and circuit failure may occur. Perform maintenance immediately and repairs to avoid affecting future use.
