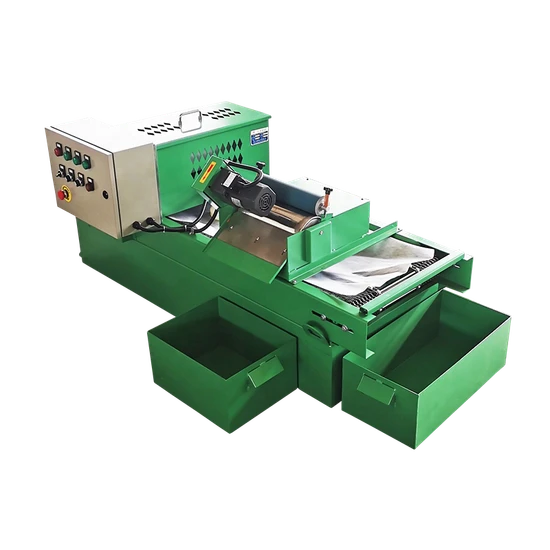

CE Direct Sales Processing Filtering Equipment Magnetic Flat Screen Paper Band Filter

Product Description

Product Description Paper tape filter, used for metal grinding processing or other processing coolant filtration, also suitable for cleaning system cleaning liquid, industrial water, organic solutions and other solutions in the removal of impurities.
Paper belt filter is mainly composed of the following parts: liquid tank, waste cloth box, filter non-woven fabric (commonly referred to as filter paper), transmission structure, signaling mechanism, driving device, water buffer device, electronic control device and liquid pump.
Flat mesh paper belt filter, drum paper belt filter, arc mesh paper belt filter, plate and frame paper belt filter, etc. all belong to the category of gravity paper belt filter, and paper belt filter relies on the gravity of the liquid itself to penetrate the filter cloth to form a filter. The filter is generally within the range of 50L/min-2000L/min, the filtration accuracy is about 15-20 microns, and the unit footprint is small, which is suitable for single-machine filtration, such as cold rolling liquid filtration system.
The paper tape filter relies on the gravity filter cloth of the liquid itself to isolate the debris, so as to achieve the purpose of purifying the liquid. The chain and mesh of the transmission mechanism form a certain depth of the liquid pool, and the filter cloth is spread on the chain and the mesh. When the dirty liquid carrying impurities flows to the non-woven fabric through the water buffer device, the impurities are isolated by the filter cloth to form a filter cake, the filter cake is getting thicker and thicker, the liquid level of the dirty liquid rises, the floating level controller sends a signal, the reducer starts, and drags the filter cloth, dirt and dirty cloth into the dirty carton, so as to realize the automatic replacement of the filter cloth; After the filter cloth is updated, the liquid level of the dirty liquid drops, the reducer stops rotating, and the machine enters the next filtration cycle. The filtered pure liquid is transported to the main engine by the liquid pump. Details
01. Magmetic minute filter
First separation, and then filtration, that is, saving filter paper, and secondary filtration.
Magnetic separators are used for the purification of grinders and other machine coolants (chip oil or emulsion). The iron filings in the coolant are sucked out by the magnetic roller of the separator to keep the coolant clean. The use of magnetic separators can reduce the number of wheel corrections, improve the surface smoothness of the workpiece, and extend the service life of the wheel and coolant.
02. Constant temperature filter
With a refrigerator, it makes the oil reaches a constant temperature.
A machine that transfers heat from a cooled object with a lower temperature to the ambient medium to obtain cooling capacity. The amount of heat transferred from a lower temperature body is conventionally called cold energy. The working medium involved in the thermal process change (energy conversion and heat transfer) in the refrigerator is called the refrigerant. The temperature range of refrigeration is usually above 120K, and 120K is subordinate to the cryogenic technical range. Chillers are widely used in industrial and agricultural production and daily life.
03. Drum type filter
Small foottprint, beautiful, good filtering dffect and high precision.

Brand	DeTianHai
Model number	TCZG400
Type	Force type
Material	Stainless steel
Color	black/green/blue/other
Application	Grinding machine

Customer Feedback Good filtration effect Coolant filtration purification process for the machine tool coolant first flow into the magnetic separator, under the action of the magnetic separator to achieve the first filtration, and then the coolant into the paper belt filter, under the action of filter paper to achieve the second filtration, after two purification of the pure coolant stored in the water tank, through the pump to re-inject the machine tool, so the cycle.
The filter motor is controlled by the level relay. When the water level in the filter reaches a certain height, the level relay is merged to realize automatic paper feeding. Company Profile
