H Type Poultry Cage Chicken Layer Farm Chicken Poultry Cage

Product Description

Product Description
H Type Poultry Cage Chicken Layer Farm Chicken Poultry Cage
Tech Pro series layer cage system is suitable for farms with more than 30,000 birds. It is often used in a well-equipped house with fully automatic systems. Having brilliant employees in R&D department and production department, we have already completed a lot of projects with up to 9-tier Tech Pro layer cages, and yeiled great results. Tech Pro series layer cage system includes layer cage structure, cage frame, automatic feeding system, automatic drinking system, automatic egg collection system, automatic manure removal system, climate control system, and control boxes system. These systems runs together to help farmers enjoy chicken-raising and make their poultry farm a wonderful success.Tech Pro series layer cage have two specifications type: Tech Pro 1200 and Tech Pro 1800.

Type	Length/Section	Dimenshion/Cell	Cells/Unit	Birds/Cell	Floor Space/Bird
Tech Pro 1200	1200mm	600mm*625mm*700mm	2	8	416.67 sq.cm
Tech Pro 1800	1800mm	600mm*625mm*700mm	3	9	416.67 sq.cm

Detailed Photos

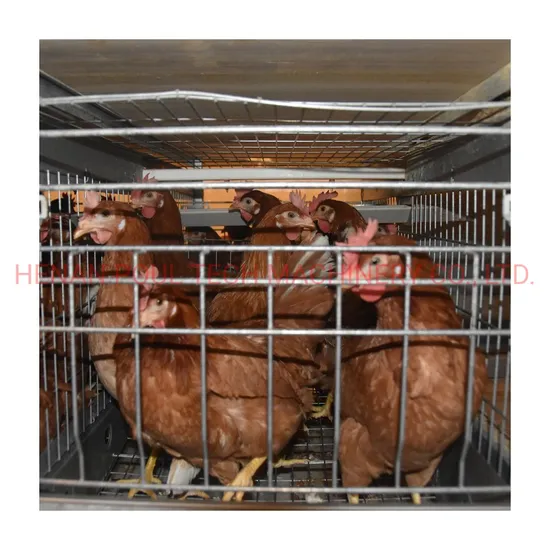

CAGE STRUCTURE
Sections side walls are produced of galvanized wire and galvanized steel sheets which will be fitted together in factory before shipment.Thus, more light and more productive ventilation are ensured,and installation workload reduced and all equipment standard can be kept perfectly because of less movement of the section sides.
Eggs can reach easily to the egg belt owing to well bevel base wires. In this way, cracked and dirtiness can be reduced at minimum level
THE AUTOMATIC FEEDING SYSTEM
It is the feeding system with feed carts. Against the inconveniences of chain feeding system cause decomposition feed,overweight to cage construction and low yield; in feeding system with feed carts, thanks to feed adjustment apparatus which is designed specially, feed is distributed hygienically, homogeneous, mixed and equally
DRINKING SYSTEM
There are 2-3 nipple drinkers for each two cage sections on the PVC pipes which are located between two cage sections lengthwise the cage row. the "V" shape leakage gutter underneath the water pipes, holds the water drops and prevent the drops to reach the manure belt, therefore a drier manure is obtained.
A water regulator is located on each tier and each row of the cage, It supply the water from the water line to the pipes, through reservoirs with the proper pressure. The filters and the medicator(DOSATRON of France) to clean the water and keep health of all chickens.
AUTOMATIC EGG COLLECTION SYSTEM
Automatic egg collection unit made of galvanized sheet and apparatus produced by our advanced own production machines, the egg bands and lift engine powers are 0.75 -1.50 HP.
The egg bands made of import cloth and the joint components made of plastic sheets. The egg belts, which are located lengthwise the cage row, towed by the egg collection heads. These jute egg belts and the egg-holding wire meshes are designed in order to prevent the eggs crash. The egg bands are anti static and not hold dust, and there is one egg brush in each end of the cage rows, therefore, eggs are clean and they are suitable for food safety.
Special brushes are placed end of all lines for cleaning egg belts.
MANURE REMOVAL SYSTEM
Manure is cleaned and discharged by the Polypropylene (PP) manure belts of 1.10 mm thickness. These PP belts are located underneath every tier and row of the cages and towed by drive reducer engines to clean the manure in a flawless way.This strong and robust construction is operated without problem even in very long hen houses. Rollers and the scrapers located on each tier and row spills the manure to the discharging manure conveyor at the end of the hen-house and the manure is removed from the hen-house by this discharging manure conveyor
Company Profile
HENAN POUL TECH MACHINERY CO., LTD. We are a modern poultry farm automation solution supplier from China.
POUL TECH (the international brand of WINWORLD Group) is a pioneer in China's digital farm management and Super-High constant temperature poultry equipment. We have already helped the livestock industry integrate the "Internet+" concept to create smart, integrated farming, supervision, circulation, and traceability solutions for poultry! POUL TECH has focused its attention on research in multiple product fields, including digital farming equipment, manure drying systems, egg grading & packing systems, Bio-Security systems, and IoT management systems (Farm-Online Management System). We are committed to building a one-stop farming supply-chain platform.
POUL TECH's smart factory features 4 smart unmanned production lines and 20 automated production lines, enabling flexible production of poultry equipment. Additionally, advanced management systems such as MES, ERP, and PLM have been established to achieve comprehensive digital and intelligent management. POUL TECH has consistently set the benchmark for global poultry and livestock equipment smart factories.
The 6-12 tier customized Super-High constant temperature poultry equipment supplied by POUL TECH has covered more than 30 provinces, cities, and regions in the domestic Chinese market and has been exported to over 60 countries worldwide. We provide global farmers with digital and intelligent poultry equipment products and services.
As a pioneer, practitioner, and leader in digital poultry farm production in China, WINWORLD and POUL TECH complete over 200 large global poultry projects every year. Our team of 500+ employees is committed to providing full-time response and global services at any time.
POUL TECH uses the new technology of the IoT (Internet of Things) Farm-Online Management System to connect Poultry Equipment Clouds, Climate Control Clouds, Farm Inspection Clouds, Manure Drying Clouds, and more. The Digital Raising System can also realize traceability in the poultry farming process, ensuring product safety and quality. The chicken house inspection robot (SHEEPDOG) invented by POUL TECH facilitates the digitization and unmanned inspection of chicken houses, serving as an "omnipotent" employee for modern farms. POUL TECH is dedicated to poultry technology invention for a healthy world, and we look forward to creating a better future together with you.
Packaging & Shipping
Exhibition photo
FAQ

Q: Which cage is suitable for my poultry farm?

A: Please kindly supply us with the following information, so then we can give you the best farm solution: Chicken type: layer, pullet, broiler, or breeder. 2. Chicken house dimension or farmland dimension.

Q: How long is the lifetime of your chicken cage?

A: 15-20 years (based on the material, local environment, and equipment maintenance).

Q: What's your MOQ of the layer cage?

A: The MOQ is a 1x20'GP container, considering the transportation cost and particularity of goods, one full container is more suitable.

Q: How to install the cages?

A: We provide installation service in two ways: 1: Installation video and online guide; 2: Send our engineer to your poultry farm.

Q: How many sets of layer cages can be loaded in one container?

A: 50-100 sets in 20'GP, 100-200 sets in 40'HQ
