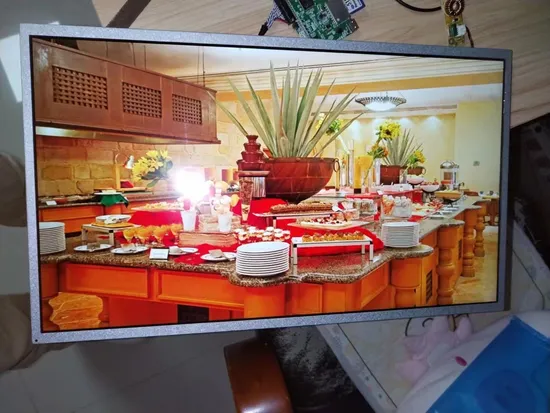

21.5-Inch Innolux Professional Wide-View IPS LCD Monitor Panel for High-End Computing
| US$100.00-130.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
M215HGE-L21
Aspect ratio
16:10
Feature
LED Backlight Display, Support TV Function
Optimum Resolution
1920x1080
Type
TFT
Widescreen
Widescreen
Response Time
25ms
3D
Not 3D
Interface Type
Edp V1.2
Size
21.5"
Resolotion
1920X1080
Luminance
200 CD/M2
Contrast Ratio
1000:1
Active Area
476.64X268.11 mm
Outline Size
495.6X292.2X11.5 mm
Viewingangle
85/85/80/80 (Typ. )
Operation Temperature
0 ~ 50 ° C
Input Terminals
30 Pins /2-CH Lvds
Colors
16.7m
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Rongen
Origin
China
HS Code
9013803020
Production Capacity
10, 000/Month
Product Description
| Panel Brand | CHIMEI INNOLUX |
| Panel Model | M215HGE-L21 1 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 21.5 inch |
| Resolution | 1920(RGB)×1080 , FHD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 476.64×268.11 mm |
| Outline | 495.6×292.2×11.5 mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 250 cd/m² (Min.) |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193172% |
| Response Time | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 11S4PWLEDWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Voltage | 5.0V (Typ.) |
| Application | DMPC |
Merchanical Drawing:
Our LCD module size are from 1.77 inch to 21.5 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| Product | Application |
| Small-size TFT LCD display | mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc. |
| Mid-size TFT LCD display | mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc. |
| Big-size TFT LCD display | educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc. |
| TN/STN//FSTN/OLED | elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc. |
| Plastic mould | industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc. |
