1 Core 1km Plywood Drum Fiber Optic Single Mode G657A1 G657A2 Steel Wire Messenger FTTH Drop Cable
Basic Info.
Model NO.
GJYXCH
Connection Structure
N/M
Material Shape
Flat Wire
Allowed Lateral Pressure
>1000(N/100mm)
Allowed Tensile Strength
100N<1000N
Core
Single Core
Certification
ISO9001
Brand
OEM
Sheath Material
LSZH
Cable Color
Black
Messenger
Steel Wire
Cable Length
1km 2km 3km
Transport Package
Polywood Drum
Specification
2.0*5.0mm
Trademark
Changrong Tech
Origin
China
HS Code
8544700000
Production Capacity
120000km/Year
Packaging & Delivery
Package Size
36.00cm * 30.00cm * 36.00cm
Package Gross Weight
21.000kg
Product Description
Product Description1 core 2 cores 1km 2km 3km Plywood Drum Self-supporting FTTH DROP CABLE SINGLE MODE G657A1 FIBER OPTIC CABLE

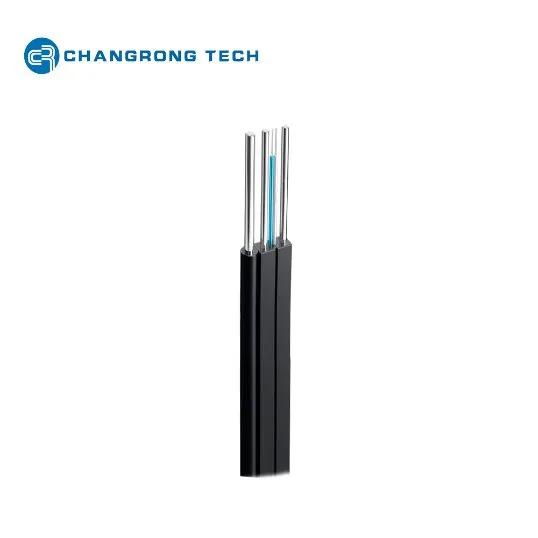

Structure:
Central optical fiber(s) with 2 parallel steel wires (or FRP) as the strength members placed on both sides
An additional strength member(steel wire or FRP).
Finally a LSZH jacket is extruded outside.
Product Parameters
| Counts | 1-4 | |||||||
| Cable Diameter(mm) | 2.0*5.0 | |||||||
| Cable Weight (Kg/km) | 18 | |||||||
| Fiber Type | G657 | |||||||
| Tensile Strength(N) | Long/Short Term:300/600 | |||||||
| Crush Resistance(N/100mm) | Long/Short Term:1000/2200 | |||||||
| Bending Radius(mm) | Static/Dynamic:G657:20D/40D | |||||||
| Temperature(ºC) | Storage /Operation:-20ºC ~70ºC | |||||||
