PP Bottle Recycling Plant HDPE PE Bottle Box Shredding Washing Machine

Product Description

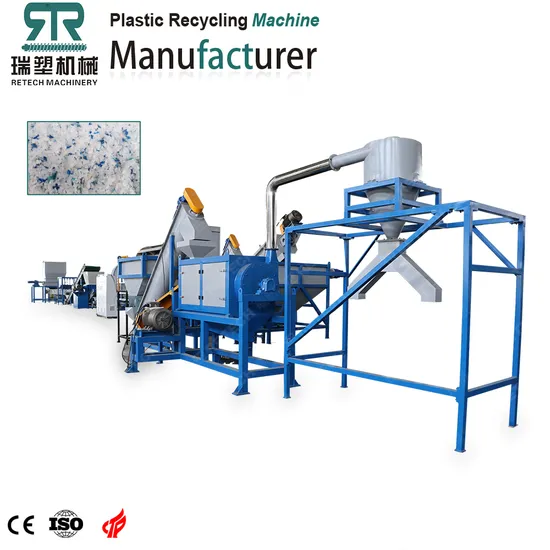

PP Bottle Recycling Plant HDPE PE Bottle Box Shredding Washing Machine
Product Overview
Description Of HDPE PE bottle box shredding washing line:
PP bottle recycling plant HDPE PE bottle box shredding washing machine used to recycling the waste PS/ABS/PE/HDPE/LDPE/PP Bottles and buckets, hollow container and so on. The production line including the conveyor belt, metal detector, plastic wet crusher, floating washing tank, high speed friction washer, centrifugal dewatering machine; drying system and label separating machine, material collecting packing system, and so on. If you need the washing line which can do bottles and film both. Pls contact with us to get more details. After crushing and washing and drying, we can use it to pelletizing line and making new plastic pellets. We also supply customized machine for you according to finally requirement.The Washing recycling machine could be displayed "L" or "U" shape according customers workshop.
Material Processed:
Our Machine
Detailed Photos
Belt conveyor of HDPE bottle recycling machine
Function: Put the raw material on the belt conveyor, conveying the material into next step.
Wet crusher of HDPE bottle washing line
Function: Wet crusher of HDPE bottle washing machine crush the material into small pieces,final plastic flakes is about 20-80mm. The diamter of screen hole is optional.
Low speed friction washer
Function: Strongly friction to clean the plastic flakes Mechanically.
Floating washer of HDPE bottle washing machine
Function: Washing out the dirty from the film or bags material by paddles, tank material is made by SUS304.
Dewatering Machine
Function: Strongly centrifugal force to remove the water from the plastic flakes.
Storage hopper
Function: Storage the material and loading the material into packing bags.
Product Parameters

Model	Capacity	Installed Power	Water Supply	Area Required:m
RM300	300kg/hr	130KW	5-6m³/hr	38*4.5*5
RM500	500kg/hr	145KW	7-8m³/hr	38*4.5*5
RM1000	1000kg/hr	190KW	8-10m³/hr	42*5*5
RM1500	1500kg/hr	230KW	10-15m³/hr	45*5*5
RM2000	2000kg/hr	280KW	15-20m³/hr	45*5*5

Company Profile
Exhibitions
Loading container

Sales Service
THE SALE SERVICE OF RETECH MACHINE! 1.Pre-sale: we given client the details technician offer, sign the sales contract etc.
2.In-sales: we supply the details layout, installation instruction, technician support for the clients.
3.After sales: we arrange engineer to install the machinery and training the workers for client.
4.We have 24 hours team to solve the after sales problem.
5.We have free spare parts with the machine.
6.We supply long term spare parts for every customer.
7.We always update the new technology to every customer.
