Double Head Blow Moulding Machine for 3L HDPE Chemical Barrel
| US$25,000.00-40,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ABLB75II
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Non-Computerized
Certification
CE
Max Product Volume
8 Liters
Output Capacity
180PCS/H
Condition
New
Screw Diameter
75mm
Export Port
Shanghai
Company Attribute
Manufacturer
Guarantee Time
One Year
Delivery Days
55 Days
Voltage
Customer Specified
After-Sales Service
Engineers Available to Service Machinery Overseas
Screw L/D Ratio
24 L/D
Screw Drive Power
22kw
Screw Heating Capacity
6kw
Output of HDPE
100kg/H
Clamping Force
78kn
Transport Package
Film Packing
Specification
ABLB75
Trademark
Dawson
Origin
Zhangjiagang, Jiangsu, China
HS Code
8477301000
Production Capacity
up to Product
Product Description

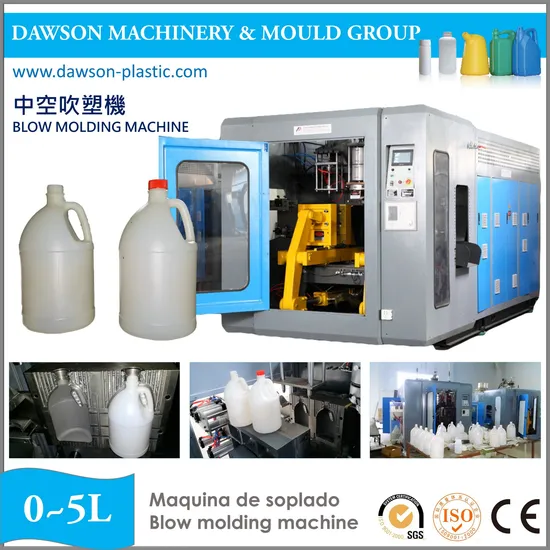

ABLB75 extrusion bottle blow molding machine was specially designed for making plastic water bottles, lubricant oil bottles, detergent bottles, plastic toys and other plastic containers not over 8L.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 8L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.
electronic parts | |
| Name | Trader |
| Micro computer control system | Japanese MITSUBISHI |
| Temperature Controller | TAIWAN YANHUA PID |
| Auxiliary Relay | OMRON |
| contactor | Schneider from France |
| Electric motor | Three phase 220V or 380V |
| Power Source | TAIWAN MEANWELL |
| Transducer | TAIDA FROM CHINA |
| hydraulic parts | |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| air control system | |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | FESTO |
| Max. Product volume | 8 liters |
| Output capacity | 180pcs/h |
| Screw diameter | 75mm |
| Screw L/D ratio | 24 L/D |
| Screw drive power | 22 KW |
| Screw heating capacity | 6 KW |
| No.of heating zone | 4 zones |
| Output of HDPE | 100KG/H |
| Oil pump drive power | 11 KW |
| Clamping force | 78KN |
| Max.size of mold | 188-600mm |
| Mold stroke | 400 X 450mm |
| Max.die diameter | 180mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.7 M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 60 L/MIN |
| Size of Machine | 3.6x1.8x2.8m |
| Weight of machine | 6.3 ton |
