Industrial Modem Support Lte FDD. B1, B3, B7, B8, B20 Lte Tdd B38, B40
| US$1.00-100.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HDRM100
Signal Type
Baseband Modem
Installation
Rack-Mounted
Clip Function
Mtk 7628
Interface Type
RJ-45
Application
Industrial, Enterprise, Household
Transport Protocols
FTP
Transmission Mode
Data Transfer
Power Supply
+5V~+48V/1A
Interface Port
1 Wan/1 LAN or 2 LAN Ports, One Console Port;
WiFi
WiFi High Quality Performance Without Congestion
Lte EU Frequency Bands
Lte FDD. B1,B3,B7,B8,B20 Lte Tdd B38, B40
Memory
Flash 16mbyte, DDR2 64mbyte
Network Mode
Lte ,WCDMA,EVDO,GPRS,GSM,CDMA 1X
Embeddedsystem
Linux or Openwrt
Working Temperature
-40~+75
Antenna
2*2 4G/WiFi MIMO Antenna
CPU
Mtk 7628
Transport Package
Carton Packing
Specification
115mm*73mm*20mm
Trademark
Head Weblink
Origin
China
Production Capacity
100000set/ Month
Product Description

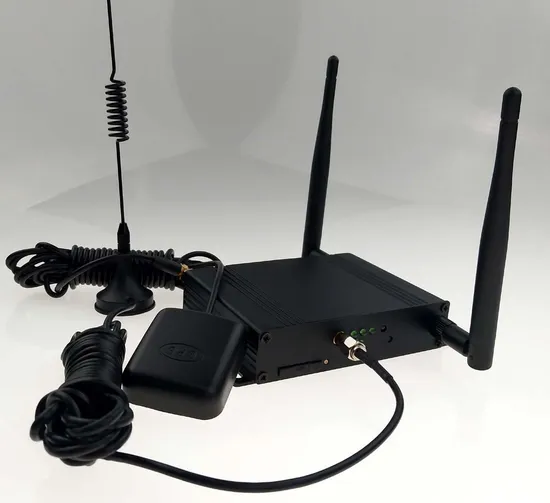

Industrial modem support LTE FDD. B1,B3,B7,B8,B20 LTE TDD B38, B40• 3G/4G LTE data transmission;
• Active auto connect;
• Embedded watchdog , Auto recovery;
• 2*2 4G/WIFI MIMO antenna;
• Integrate 3G/4G LTE,WIFI,GPS feature;
• WIFI High quality performance without congestion;
• 1 WAN/1 LAN or 2 LAN ports, One console port;
• With SIM card slot;
• Wide power supply: +5V~+48V/1A
• Remote management platform;
• Firmware version: Linux or Openwrt;
• Small size dimension:115mm*73mm*20mm ,
| Item | Product specification |
| CPU | MTK7628 |
| MEMORY | FLASH 16MByte, DDR2 64MByte |
| Embeddedsystem | Linux or Openwrt |
| Network | FDD LTE,TDD LTE,WCDMA,EVDO,GPRS,GSM,CDMA 1X |
| WIFI | WIFI 802.11 b/g/n, 300Mbps |
| Data rate | 4g: CAT 3, DL 100bps , UL 50Mbps ( Or CAT 4 DL 150Mbps , UL 50Mbps) WCDMA HSPA+: DL 42Mbps, UL 5.76Mbps GPRS DL/UL 85.6Kbps |
| WIFI Tx Power | 14 dBm(11g),17 dBm(11b),14dBm(11n) |
| WIFI Rx Sensitivity | <-70 dBm@54Mpbs |
| 2G/3G/4G Transmitting Power | GSM/GPRS: Class 4 (2W); GSM850,EGSM900 Class 1 (1W): DCS1800,PCS1900 EDGE: Class E2 (0.5W): GSM850,EGSM900 Class E1 (0.4W): DCS1800,PCS1900 UMTS: Class 3 (0.25W): WCDMA Class 3 (0.25W): CDMA2000 Class 2 (0.25W): TD-SCDMA LTE:Class 3 (0.25W) |
| GPS | GPS/GLONASS,Protocol: NMEA |
| WIFI Frequency | 2.4G |
| Hardware interface | 2*LAN 10/100Mbps, Console port(Be used as DTU, is available to connect serial devices) |
| RF connectors | SMA connector , 4G(female),WIFI(male),the characteristic impedance 50Ω |
| Security Encryption | Support WEP,WPA,WPA2 encryption ways |
| Protocol | PPTP,L2TP,IPSEC VPN,TCP,UDP, DHCP,HTTP,DDNS,TR-069,GRE, HTTPS, SSH,Open VPN,SNMP |
| LED Indicator | "SYS", "Net", "WAN", "LAN",RSSI |
| SIM/UIM | Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection |
| Key button | Reset |
| Standard Power | DC 12V/1A |
| Power Supply | DC 5~48V |
| Working current | 2A (Max Current) |
| Temperature | Operating Temperature -40~+75ºC Storage Temperature -45~+85ºC |
| Environment humidty | 95% |
| Case | Aluminum Alloy Shell |
| Size | 115mm*73mm*20mm |
| Weight | 160g |
| Frequency bands | ||
| 2G Version | GSM/GPRS 850/900/1800/1900MHz | |
| 3G Version | WCDMA. 850/1900MHz, 850/2100MHz & 900/2100MHz | EVDO 800MHz & 800/1900MHz |
| GSM. 850/900/1800/1900MHz | ||
| 4G Version | Version A | LTE FDD. B2,4,5,17 |
| UMTS. 850/1900MHz | ||
| LTE FDD. B1,3,7,8 | ||
| Version C | LTE TDD B38, B39, B40, B41 | |
| UMTS. 900/2100MHz | ||
| TD-SCDMA. 1880~1920MHz & 2010~2025MHz | ||
| GSM. 900/1800MHz | ||
| Version E | LTE FDD. B1,3,7,8,20 | |
| LTE TDD B38, B40 | ||
| UMTS. 900/2100MHz | ||
| GSM. 900/1800MHz | ||
| LTE FDD. B1,B3,B8,B18,B19 | ||
| Version JC | LTE TDD. B41 | |
| UMTS. B1,B6,B8 | ||
| GSM. 900/1800MHz | ||
| Version JE | LTE FDD. B1,B8 | |
| UMTS. B1,B8 | ||
| GSM. 900/1800MHz | ||
| Seven-Band LTE-FDD B1/B3/B4/B5/B7/B8/B28 | ||
| Version SA | Tri-Band LTE-TDD B38/B40/B41 | |
| Qual-Band UMTS/HSDPA/HSPA+ B1/B2/B5/B8 | ||
| Qual-Band GSM/GPRS/EDGE B2/B3/B5/B8 | ||
| Data rates | ||
| 3G LTE router | WCDMA. DL 14.4Mbps, UL 5.76Mbps | EVDO. DL 3.1Mbps, UL 1.8Mbps |
| 4G LTE router | FDD LTE. DL,100Mbps UL,50Mbps | Or |
| TDD LTE. DL,50Mbps UL,25Mbps | LTE Category 4 - 150 Mbps (DL) | |
| WCDMA. DL 42Mbps UL5.76Mbps | LTE Category 4 - 50 Mbps (UL) | |
| TD-SCDMA. DL 2.8Mbps UL 2.2Mbps | ||
