Manufacturer of 3000 Liter Singgle or Double Screw Cone Powder Mixer

Product Description

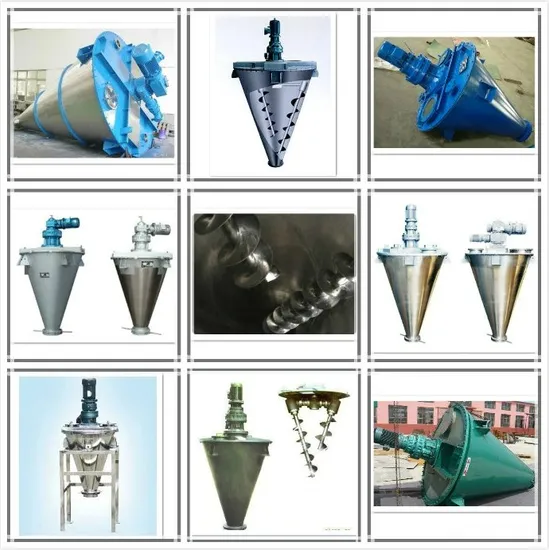

Double Screw Cone Type Mixer
1.More Details
Double screw mixer is convection mixer of high efficiency.It has characteristic of gentle, high accuracy mixing and no damage to product.Two screws suspended from a turning arm, with different rotation semi diameter and different length, make three-dimensional action;Meantime, two screws make self rotation.
2.Helix cone mixer application:
1.Applicable material proportion of the poor, the powder particles are relatively large materials;
2.Suitable for ceramic glaze mixing gentle process, the material particles do not pressure-fed or broken;
3.The heat-sensitive materials will not overheat;
4.In the powder - powder mixing process is very easy to add working conditions or providing a liquid to a plurality of spray outlet means;
5.The bottom valve of dislocation convenient material, since the bottom of the spiral no fixtures, so there is no pressure fed phenomenon
3.Features:
1.Homogeneous mixing
2.Short mixing time 5-15 minutes
3.Clean discharge & no leftover
4.Central discharge valve:
Electronic, pneumatic, manual (optional)
Ball valve, flap valve, knife gate valve, butterfly valve (optional)
5.Main shaft seal:Stuffing seal and air purge seal
6.Drive:Siemens motor, cycloid or gear reducer
7.Limit/safety switch (optional)
8.Heating/cooling jacket optional)
4.specifications:
CMPN Series Technical specifications:

Mixer Model	Working volume (L)	Rotation speed (rpm)	Motor Power (kw)	Overall Dimension (mm)	Machine Weight (kg)
CMPN-50	20-30	2&108	0.75	Φ600×H1200	120
CMPN-100	40-60	2&108	1.1	Φ700×H1500	200
CMPN-300	120-180	2&108	2.2	Φ900×H2000	500
CMPN-500	200-300	2&108	3	Φ1100×H2300	650
CMPN-1000	400-600	2&60	4	Φ1600×H2700	1200
CMPN-2000	800-1200	2&60	5.5	Φ1900×H3400	1550
CMPN-3000	1200-1800	2&60	7.5	Φ2100×H3700	2200
CMPN-4000	1600-2400	2&60	11	Φ2400×H4400	2500
CMPN-5000	2000-3000	2&60	15	Φ2500×H4600	3100
CMPN-6000	2400-3600	2&60	15	Φ2700×H4900	3600
CMPN-8000	3200-4800	2&60	18.5	Φ2800×H5300	4100
CMPN-10000	4000-6000	2&60	22	Φ3000×H5600	4500
CMPN-12000	4800-7200	2&60	22	Φ3100×H6000	4800
CMPN-15000	6000-9000	2&60	30	Φ3400×H6600	5100
CMPN-20000	8000-12000	2&60	45	Φ3700×H7100	6200
CMPN-25000	10000-15000	2&60	55	Φ3900×H7500	7300
CMPN-30000	12000-18000	2&60	75	Φ4200×H8000	8500

DSH Series Technical specifications:

Mixer Model	Design volume (L)	Load factor	Working condition	Motor Power (kw)	Dimension (mm)	Machine Weight(Kg)	Mixing uniformity
DSH-100	100	0.85	ATM	1.5	Φ750×H1580	250	≥95%
DSH-500	500	0.85	ATM	3	Φ1150×H2320	600	≥95%
DSH-1000	1000	0.85	ATM	5.5	Φ1480×H2850	1200	≥95%
DSH-2000	2000	0.85	ATM	5.5	Φ1820×H3510	1500	≥95%
DSH-3000	3000	0.85	ATM	7.5	Φ2050×H3800	2300	≥95%
DSH-4000	4000	0.85	ATM	11	Φ2250×H4480	2500	≥95%
DSH-5000	5000	0.85	ATM	15	Φ2350×H4720	2800	≥95%
DSH-6000	6000	0.85	ATM	15	Φ2560×H4980	3000	≥95%
DSH-8000	8000	0.85	ATM	18.5	Φ2780×H5360	4500	≥95%
DSH-10000	10000	0.85	ATM	18.5	Φ3020×H5810	5500	≥95%
DSH-15000	15000	0.85	ATM	22	Φ3460×H6510	6800	≥95%
DSH-20000	20000	0.85	ATM	37	Φ3810×H7420	9800	≥95%
DSH-25000	25000	0.85	ATM	45	Φ4090×H7800	11000	≥95%
DSH-30000	30000	0.85	ATM	55	Φ4350×H8200	12500	≥95%

5.Our Services
1.We are a direct manufacturer and our priority is your complete satisfaction.
2.Logo printing:We can print any logo as per your requires on the case.
3.We take care of each order from start to finish.All emails will be answered in 1 day
4.No matter what's your order quantity, we will offer the same attention to our quality and service
5.Delivery & lead time:All delivery methods are ok, and our lead time is quite short.Usually, our lead time around 7 days, depending on the quantity.
6.Packages:Available for ploy bag and carton box
6.About us
Li&Li Mechanical (Guangzhou) Corporation is a professional and experienced corporation that mainly occupied in design, manufacture, installation and debugging the equipment of coating, chemicals, cleaning goods, pharmacy, new energy,Oil&Gas engineering daily use, food, etc. Enterprise strictly execute the ISO9001 standard management,what's more, our company has obtained 33 national utility model patents and has obtained the D1.D2 pressure vessel manufacturing and pressure pipeline installation qualification issued by the National Quality Inspection Bureau. Our products include: all kinds of Reactor, high-speed dispersers, mixing tanks, condensers(heat exchanger), recycling towers, weighing control systems and other complete sets of automation control equipment, at the same time, customize all kinds of special-shaped equipment for customers.
7.Certification:
8.RFQ:
1. Q: Can you give us a quotation right now?
A: Because each of our products are different and special. Please give us detailed technical data. Then we will make a design and quotation for you as soon as possible.
2. Q: What are your company's achievements?
A: The company is a member unit of Guangdong Special Equipment Industry Association and a director unit of Guangdong Battery Industry Association. In 2018 and 2021, the company won the title of High-tech Enterprise unit of Guangdong Province. In 2021, the company was selected into the list of "Specialized and High-Tech" enterprises in Guangdong Province, and has applied for 33 invention and utility model patents.
3. Q: Can you give us your price list?
A: Sorry, we don't have any. Our products are all manufactured according to customers' requirements. Each of the equipment are different and the price is different.
4. Q: What is your MOQ?
A: 1 piece/set.

5. Q: Do you accept a special order?
A: Yes, we do.
Or we can make a design for you according to your requirements. What we supply is not only product, but also solution and design.
6. Q: Can you make a design for us?
A: Yes, we can. What we supply is not only product, but also solution and design. And if you make the product in our factory, the design will be free. If not, design fees will be charged accordingly.
7. Q: Can you give us the technical drawing and data?
A: We will give you the overall dimension drawing for your plan and project. But the detailed drawing and data will be sent you after we signed the contract and confidentiality agreement.
8. Q: Do you provide after-sales service?
A: Yes, we do. This product is guaranteed up to one year from purchase unless man-made damage. If there is anything wrong with product itself quality problem, we will change or repair it at our charge. If not, we will provide after-sales service at your charge.
9. Q: Can your engineer come to our place for installation guide?
A: Yes, we can. We will provide a video and document for installation. If you still have problem, we will send our engineer oversea for installation guide.

10. Q: Where is the nearest port?
A: HUANGPU Port.
