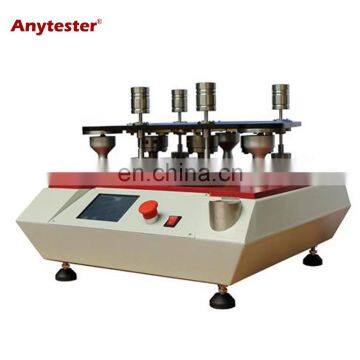

Martindale Abrasion and Pilling Tester with 6 stations

Product Description

Product Description
Application HY0401-6 Martindale Abrasion and Pilling Tester is used to determine the abrasion and pilling resistance of all kinds of textile by Martindale method. The circular test specimens are rubbed against the friction surface comprising known abradents at a defined force in the form of a Lissajous figure. Standard ASTM D 4966, D 4970, D3866ISO 12945-2, ISO 12947.1BS 5690, 3424DIN 53863, DIN 53865JIS L1096GB/T4802.2, GB/T21196FZ/T20020IWS Tm196/ TM112 Note: This Martindale Abrasion and Pilling Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.Features1 6 working positions to test 6 specimens at the same time;2 Microcomputer control, large color touch screen operation;3 With two test method, small and large standard Lissajous curve, small Lissajous mode for pilling test, large Lissajous mode for abrasion test;4 Load pieces and key components made of stainless steel, nice and durable;5 Guide plate made of special aluminum alloy to ensure long time operation without deformation;6 Can preset several running program and several counting mode (increment and decrement)7 Independent cumulative count for each working position;Specification ModelHY0401-6Martindale Abrasion and Pilling TesterWorking position6Specimen diameterdia.140mm (for pilling test)dia.38mm (for abrasion test)Abrading table diameterdia.120mmEffective diameter of abraderA type(1.96N): dia.28.65±0.05mmB type(1.52N): dia.90 ±0.10mmweightsAbrasion testSpecimen holder: 200g±1gLoading piece: 395g±2g, 594g±2gPilling testSpecimen holder: 155g±1gStainless steel disc: 260g±1gTest speed50r±2r/minloading pressure weight for specimen mounting2385g±10gCounting range0~999999times, settablePower supplyAC220V±5%, 50Hz, 500wDimensions885×600×410mmWeight170kg
