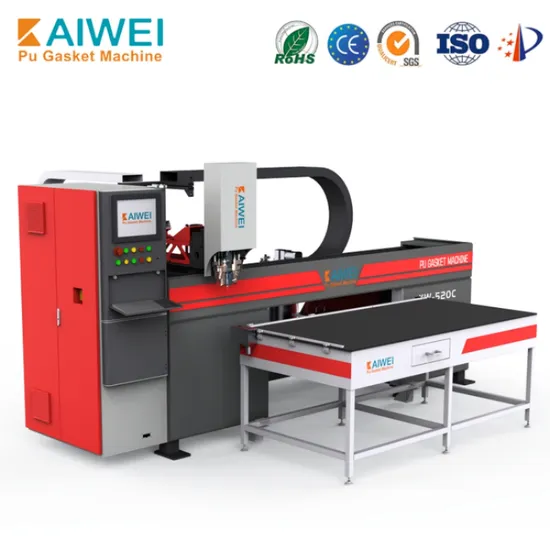

KW-520D PU Foam Gasket Sealing Dispensing Equipment
Application
KW-520D is widely applied for car, cabinet/box, air filter, air-conditioning puring equipment, packing, electrical element, light, new energy, etc.
Feature
Material: PU
Stroke:1000X8000X200mm(X*Y*Z)
Working table:2000*1000mm(L*W)
Mixing head: KW600
Finished gasket width 6-30mm.

Items		Parameters
Machine	Model	KW-520D
	Overall space	4000X3300X2300mm (L*W*H)
	Working effective stroke	2300X1250X200mm (X*Y*Z)
	Weight	1900 KGS
Chemical material	Name	Polyurethane
	Components	2 Components (A+B)
System/operation	Operating system	Win 7/10
	Operating method	Keyboard/ Buttons
Mixing head	Model	KW600
	Gasket width	6-30mm
	Clean method	High pressure water clean+ air-blow cleaning
	Mixing ratio(A:B)	1∶1-10∶1
	Output	1-4 g/s
	Repeated position precision	±0.05mm
	Air pressure	6-8 bar
Mechanical frame	Type	3-aix linear mechanical arm
	Speed	0-250mm/s
Storage tank	Type	Air pressure tank
	Volume	A Tank-40L B Tank-40L
	Automatic stirring	A Tank: YES B Tank: NO
	Glue refill	Manual
	Air refill	Automatic
Working table	Material	Aluminum profiles
	Size	2000X1000X900mm (L*W*H)
Electric power	Voltage	3X380V ( It can be designed base on customer request)
	Power	5.5kw
Air	Dry compressed air	≥6bar
Water		Clean tap water

Mixing and Dispensing:
Mixing head model:KW-600 Dimension:410*200*135mm Weight:4.6KG Colour: Silver Output:1-4g/s Repeated glue output precision:1% (weight test) Pressure control method: electromagnetic valve
Description: High pressure water-cleaning and air-cleaning Modular light-weight structural design; High strength aluminum alloy and stainless steel structure; Multiple level glue injecting Stirring bar speed is adjustable, special design makes glue mixing very even High pressure pinhole injecting valve to control water-cleaning Air-blow pinhole injecting valve to dry mixing head Stirring bar directional movement to control the nozzle locking function Graphical editing mode
1) Auto Cad is built in the vertical computer;
2) USB port to transfer the Auto Cad drawing to the vertical computer;
3) Gallery with standard pictures in the vertical computer;
4) Wireless Hand operator panel for teach in programming;
Metering Pumps:
Germany Barmag metering pumps can assure the precision of glue feeding.

Name	Brand	Model	Speed(ml/r)	Quantity	Type
A feeding valve	Barmag	1-001-1787	3	1 set	single inlet and outlet
B feeding valve	Barmag	1-001-1785	0.6	1 set	single inlet and outlet

Mechanical Frame:
Mechanical frame is including 3-axis steel welding mechanical arm, gear-rack, rail, servo motor, speed reducer, drag chain, steel base and others.
Steel welding frame can meet the demands of high strength and stability when the machine moves in high speed. Besides, skewed tooth gear-rack
can improve the stability and precision of 3 axes, reduce the noise.
Electrical control panel:
KAWIEI ES SERIES control panel:1700*1000*400mm(H*W*D) Material :mild carbon steel Color: RAL9003 RAL2011 Elements brand:Schneider Omron Siemens and others Storage tank:
1,Material:stainless steel 2,Volume: A-40L B-40L 3,Automatic high-low level alarm for A 4,A tank is with automatic glue-stirring and air-refilling function 5,A,B tank are with impurity filter 6,A tank with automatic air refilling and mixing function
Working table:
Dimensions:2000*1000*900mm(L*W*H) Material:Aluminum profiles Desk top:Grey wear-resisting cloth Water and air-cleaning stainless box Control button box Work-piece fixing stainless bars
Raw Material-PU
PU is a product of 2-component Polyurethane. It adopts FIPFG (foamed-in-place foam gasket) technology which can foam on the
workpiece directly. The finished product is a soft and elastic foamed gasket. This gasket is made from component A and component
B. Component A is mainly polybasic alcohol, Component B is a hardener-isocyanate. After mixing A and B according to a certain
proportion and completely foaming, the mixture will become a soft foamed sealing strip.
• Mixing time: time for mixing component A and component B
• Reaction time: time for the mixture to react( about15-60 seconds after mixing)
• Foam time: time from reaction to finish (about 15-180 seconds)
• Dry time: time for no viscosity on the suface, and no damage with touch under room temperature 25 ºC(about 2-20 minitues later)
• Available time:time for the availability of gasket to be pressed or assembled (about 20 minitues-12 hours later)
