Big Base Tissue Rewinder Slitter Embossed Roll Making Machine with Tube Core

Product Description

Automatic Toilet Paper Rewinding Slitting Machine Product Description Automatic toilet paper rewinding machine adopts computer programming technology to realize automatic tube changing (or core-less automatic paper rolling), automatic glue spraying, edge sealing and edge trimming, which reduces workers' working intensity and improves product quality.
This machine adopts international new PLC computer programming technology (system can be upgraded), frequency control, automatic electronic brake. The touch-type human-machine interface operating system uses a coreless rewind forming system. application the PLC program wind column forming technology achieves the characteristics of faster rewinding and more beautiful molding.
Product Parameters

Model	1092mm, 1575mm, 1880mm, 2100mm, 2400mm(customized)
Based roll width	1092mm - 2400mm (customized)
Based roll diameter	1200mm (customized)
Finished roll diameter	40mm - 200mm
Paper tube core inner diameter	76mm
Paper backing	1-4 layers, general cain feed or continuously variable tranmission feed paper
Punch	2 - 4 knives, spiral cutter line

Control system	PLC control, variable frequency speed control, touch screen operation
Product range	core paper, non core roll paper
Non core roll paper	automatic core pulling
Production speed	150 - 280 m/min
Power configuration	380V 50Hz
Required air pressure	0.5MPa
Embossing	single or double embossing option (steel roller to wool roller, steel roller)
Blank holder	airbag control , cylinder control, steel to steel structure

Main Features 1. Using PLC computer to program the finished paper in the rewinding process to achieve the tightness and looseness of the different tightness to solve the looseness of the finished product due to long-term storage.
2. Full-automatic rewinding machine can choose double-sided embossing, gluing compound, which can make paper more soft than single-sided embossing, the effect of double-sided finished products is consistent, and each layer of paper does not spread when used, especially suitable for processing. Roll up kitchen paper towels and reduce weight by 15% or more when finished in the same size.
3. The machine is equipped with processing unintentional, solid, paper tube toilet paper, which can instantly switch between products, and can also be selected according to user needs.
4. Automatic trimming, glue spraying, sealing, and shafting are completed synchronously, so that there is no paper loss when the roll paper is cut into the band saw and packaged, which greatly improves the production efficiency and the grade of the finished product. Easy to enable.
5. Pneumatic belt feeding, double reel and each axis of the original paper have independent tension adjustment mechanism

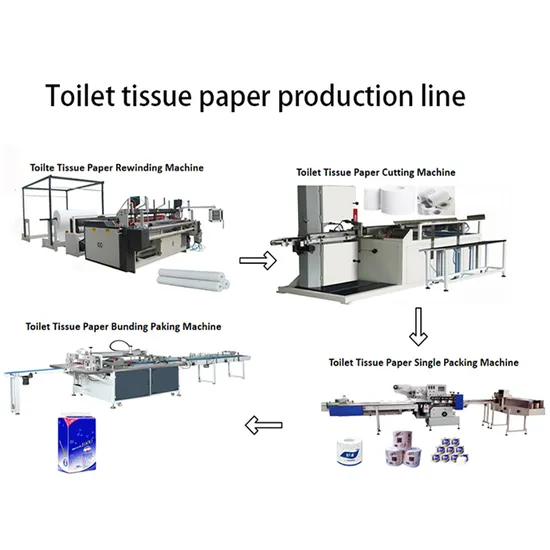

Working Principle Four-roller automatic feeding→synchronous conveying→embossing→punching→automatic rewinding→cutting→packing→sealing.
1. Rewinding---The main purpose of the toilet paper rewinding machine is to process the large shaft paper into a long strip of toilet paper roll.
2. Cut the paper---The long piece of toilet paper cut by the paper cutter is cut into semi-finished products of the length required by the customer.
3. Packaging---Packaging can be packaged in a packaging machine or manually wrapped, and the semi-finished products of the toilet paper are packaged and sealed by a sealing machine.

Detailed Photos
Workshop
Packaging & Shipping
Company Profile
Qinyang NH Paper Machinery Industrial Group Co,.Ltd (referred to NH Paper) , located in Qinyang City Henan Province, is a professional machine manufacturing factory integrating design, production and sales. Its main business includes all various of paper making machines, pulping equipment, paper making mesh and paper making felt.
NH Paper has high- precision CNC machine tools and processing centers, advanced equipment and testing instruments, sophisticated technology , a strict and complete quality management system. NH Paper also gathers a scientific and technological team with professional technology and advanced level, who make full use of new technology , processes and material to ensure the stability and reliability of product.
Look forward to hearing from you sooner and establishing a long friendly business relationship with you . We promise we will do our best to help you .Besides ,welcome you to visit our factory at anytime.
