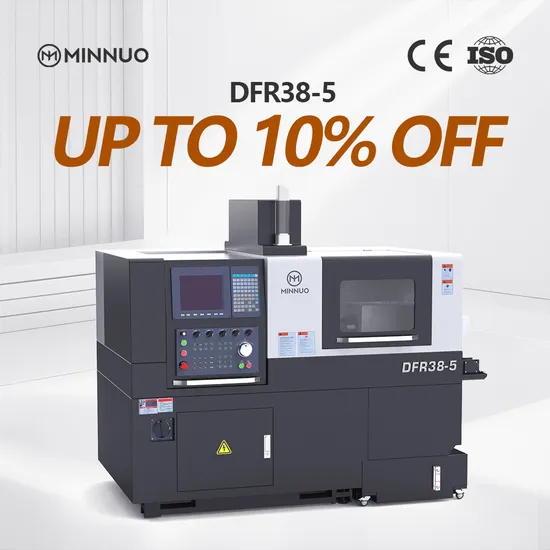

Surface Machining 5 Axis Swiss Lathe Automatic Tool-Changing Accuracy-Maintaining Fail - Safe 5 Axis Swiss Lathe

Product Description

Swiss lathe machine is a CNC lathe with high precision, high efficiency and high stability, suitable for a variety of metal processing fields.
Show Details
Main spindle/back spindle uses a high-output built-in motor to enhance processing capabilities. It is also equipped with a Y-axis back tool station and can carry up to 6 power heads to meet various back processing needs.Manual chuck/hydraulic chuck/pneumatic chuck optional
The maximum speed of 10,000 rpm front tool head greatly shortens the processing cycle of small-diameter hole processing
The fixed product discharge chute does not interfere with the front tool table, and the product recovery time is shortened to 1 second.
Supports FANUC and Siemens system options
Appearance display drawing

machining capacity	Medium Duty
max. weight of workpiece(kg)	Enquiry us
Max.machining diameter	φ38mm
Max.headstock strokeWith guide bush	230mm
Without guide bush	1:2.5D
Fixed boring tool Max.drilling capability	φ23mm
Max.tapping capability	M16
Max drilling capability	φ13mm
Max tapping capability	M10
Spindle speed	max.6000min.
Driven motor	3.1KW
Main spindle speed	max.6000min.
Rapid feeding rate	30m/min.
Machine weight	About 4200kg
cnc control system	GSK/Fanuc/Siemens
key selling points	Multifunctional, Automatic, Competitive Price, High Safety Level, High-accuracy, Energy saving, Sustainable, High Productivity, Long Service Life, Other, Easy to Operate, Flexible Manufacturing, High Rigidity, Low Maintenance Cost, Digital, Remote Monitoring, IoT

Company Profile
We combine the latest technology, superb craftsmanship and our engineering team to provide our customers with high quality custom-made parts in a wide range of metals including stainless steel and aluminium for applications in the automotive, aerospace, mechanical engineering, mould making, medical equipment, electronics and energy industries, and we are able to carry out a wide range of high-precision machining operations, such as turning, milling, drilling, and grinding, in order to satisfy the complex machining needs of different industries. We have worked with artists, designers, architects, engineers and decorators from Hong Kong, Southeast Asia, Northern Europe and the United States. Each machine features robust construction and advanced CNC control systems. Whether it's complex 3D machining or precision surface finishing, our machines will meet your exacting demands for quality and efficiency.
Our Advantages
Exhibition
OUR SERVICES
Packaging & Shipping
FAQ
1.Can you recommend equipment based on part drawings?
Minnuo has a highly responsive pre-sales team. If you provide the drawings, we canrecommend suitable equipment for a single machine within 10 minutes. For productionlines requiring multiple machines, we'll deliver a complete solution within 5 business days.
2.Do you offer customization?
Minnuo is equipped with comprehensive production facilities. We can provide customizationfor machine systems, spindle speeds, motor power, and even the sheet metal casing.
3. How is the quality ensured?
Our company uses top-tier international machining centers to ensure precision incomponent manufacturing. Additionally, we provide a quality inspection report for everymachine before it leaves the factory.
4.What is the delivery time for machines?
We keep stock of standard models for fast delivery. Customized models can be deliveredwithin 30-45 working days.
5.After-sales service
Our equipment comes with a one-year warranty, during which we offer free repair servicesIn case of equipment issues, customers can contact our after-sales team anytime. Weprovide 24-hour technical support through remote video, phone, or on-site service toresolve problems quickly.
