Hydraulic Lifting Equipment Work Platform (8m)

Product Description

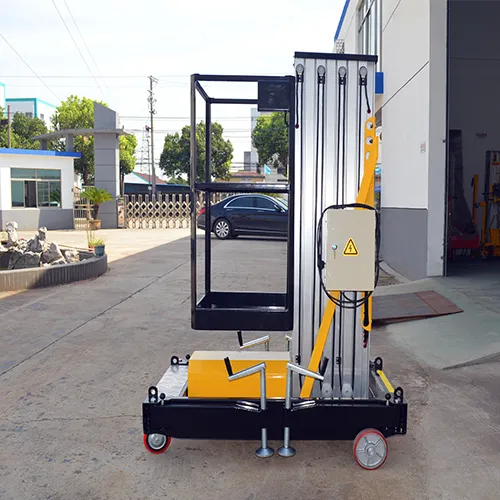

• Single Mast Aerial Work Platform:
Application: It is widely used for aerial installation and maintenance of the working sited such as hotel, grand hall, sport stadium, large factory, workshop, warehouse, granary, bus or railway station, airport, gas station and aerial pipeline.
• Features:
1. Small footprint, less weight, easily moved, is used for lifting workers to the high level.
2. Able to access to limited passageway.
3. Up and down system makes it more convenient for one person operate on the platform.
4. The most ideal equipment for aerial work to replace ladder or rigger with high efficiency and more security.
• Standard Configuration:
1. Power supply: single phase AC (AC220V).
2. Move mode: manual (default).
3. Driving unit: one unit hydraulic pump, small volume and less noise.
Others:
1. Leveling of platform is guaranteed by adjusting outrigger with screws.
2. Electric limit switch shall cut off power when up limit is reached.
3. Ground/platform control modes are available, rendering possibility of one operator.
4. Stroke protection block is built in hydraulic cylinder of security.
5. Emergency lowering system is equipped.
6. Antiskid staircase is equipped.
7. Leveling indicator is equipped.
• Parameters

Model	Max Platform Height (m)	Max Working Height (m)	Rated Load (kg)	Platform Size (m)	Lifting Motor		Weight (kg)	Overall L*W*H (m)	Outrigger Size (m)
					AC (VAC/kw)	DC (VDC/kw)
GTWY6-100	6	7.7	150	0.6*0.55	220/0.75	24/0.8	260	1.32*0.80*1.65	1.76*1.63
GTWY8-100	8	9.7	125	0.6*0.55	220/0.75	24/0.8	300	1.32*0.80*1.98	1.76*1.75
GTWY9-100	9	10.7	125	0.6*0.55	220/0.75	24/0.8	326	1.38*0.85*1.98	1.76*1.83
GTWY10-100	10	11.7	125	0.6*0.55	220/0.75	24/0.8	350	1.42*0.85*2.10	1.76*1.81

• Optional Configuration:
Power supply: Battery DC with charger, suitable for outdoor operation.
Move mode:
1. Electric moving device is equipped in case of long distance travel
2. Could be built in carriage of truck
3. Trailer base could be provided in case of outdoor operation
Others:
1. Insulated platform
2. Explosion-proof electrical system
3. Overload alarm
4. Outrigger limit switch
5. Tilt alarm
6. AC power to platform
7. Working alarm
8. Rubber dust stop
9. Explosion-proof valve for oil tube
• Company Certificates
• Part or Customers
• Packing
• Warranty
1. User-friendly English manual for machine using and maintenance.
2. One year warranty for whole machine without man-made fault.
3. We will send you parts for free if there are any non-human factors problem during warranty time.
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and holidaysm engineers are available to your company if necessary.
