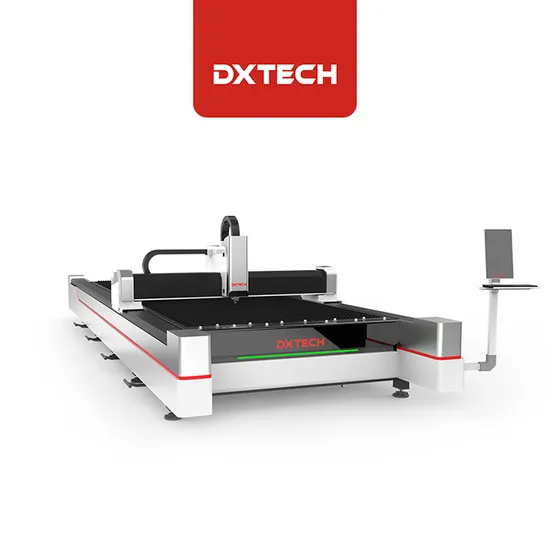

Large Format 12m 14m 16m Custom Size Super Thick Sheet Metal Fiber Laser Cutting Machine Bevel Cutting Machine

Product Description

Features
1. Oversized processing formatThe maximum processing format can reach 2500mm*12000mm, and the maximum thickness of the plate can be cut to 25mm. It can meet the requirements of large-format processing. Customized formats are supported.2. High-strength split plate welding bedOptimize the transportation plan so that it can be loaded into the general container of 20'GP and 40'HQ. Reduce the transportation cost, and the transportation cost is only 1/3 of the frame container transportation.3. Split frame support tableReduce the load of the bed structure, decrease the impact of material rushing on the bed structure, ensure the accuracy of the machine, and improve the loading weight of the table.4. Subdivided Fluid Domain DustingThe smoke exhaust device automatically senses the laser cutting position to open precise smoke exhaust, closes the non-cutting area for smoke exhaust, fully enclosed smoke control increases suction, and removes smoke to the greatest extent.5. Replaceable Independent burn-proof sheet metalReduce the erosion of slag injection on the bed and improve the life of the bed.
Technical Parameters

Model	DXTECH-2040L	DXTECH-2060L	DXTECH-2560L	DXTECH-2580L	DXTECH-25120L
Working area	2000mm*4000mm	2000mm*6000mm	2500mm*6000mm	2500mm*8000mm	2500mm*12000mm
Positioning accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm
Repositioning accuracy	±0.02mm	±0.02mm	±0.02mm	±0.02mm	±0.02mm
Max. acceleration	1.5G	1.5G	1.5G	1.5G	1.5G
Laser power	1kW - 6kW	1kW - 6kW	1kW - 6kW	1kW - 6kW	1kW - 6kW
Laser	Multiple options	Multiple options	Multiple options	Multiple options	Multiple options
Focusing method	Auto/manual	Auto/manual	Auto/manual	Auto/manual	Auto/manual
Maximum speed	150m/min	150m/min	150m/min	150m/min	150m/min

Premium Product Components

Aviation aluminum beam
1) It has the characteristics of corrosion resistance, lightweight and high rigidity, which ensure the high-speed movement during laser processing.
2) It has perfect dynamic performance, such as anti-twisting, anti-tilting, and
resistance to deformation, etc., to ensure higher cutting accuracy.
Smart Focus Laser Head
1) Heat dissipation: Both collimating mirror and focusing mirror set are heat dissipation accessories.
2) Cooling airflow nozzles are added to effectively protect the nozzles and ceramics and extend the working time.
3) Tracking aperture: By 35mm aperture, the interference of stray light is effectively reduced.
4) Auto-focusing: free from human interference, focusing speed up to 10m/min and repeat accuracy about 50 microns.
Staggered blade table
This is a staggered blade designed by our designer, which increases the contact area with the plate and has a maximum load-bearing capacity.
Samples Display
Application
Why choose DXTECH?
FAQ
1. Do you have the CE document and other documents for customs clearance? A: Yes, we have the Original. At first, we will show you and after shipment, we will give you CE/Packing list/Commercial
Invoice/Sales contract for customs clearance.
2. Payment terms? A: ****** trade assurance/TT/West Union/Paypal/LC/Cash and so on.
3. What's the max. cutting thickness? A: Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass, and other high-reflection sheet metal.
4. Which kind of materials can be processed on this machine?
A: Wood, MDF, stone, acrylic, glass, plastic, foam, aluminum, copper, and almost all kinds of non-steel materials.
5. How long is the delivery time?
A: For standard machines, it will be 7-10 days; For non-standard machines and customized machines according to the client's specific requirements, it will be 15 to 30 days.
