Orange Heavy Duty PVC Helix Spiral Suction and Delivery Hose

Product Description

Product Description Orange PVC Suction Hose

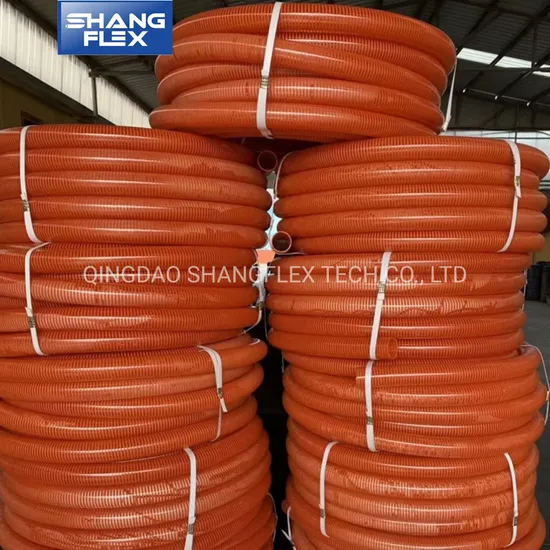

Detailed Photos PVC Suction Hose
Product Parameters Feature:
smooth pvc inner tube and smooth cover , constructed with rigid pvc helix inside Minus pressure resistant , high working pressure excellent flexibility , extrem bending radium resistant to crushing , abrasion and most chemicals high and low temperature resistant , working pressure : -5ºC to 70ºC Applications:
this hose is designed to delivery and suction water ,slurry with pump in irrigation , mining , construction , drain cleaning truck , water truck.
Medium Duty - Specifications

Inner Diameter		Outer Diameter	Length	Working Pressure	Burst Pressure	Weight
Inch	mm	mm	Mtr/Roll	bar	bar	kgs/Mtr
3/4"	19	23	50	8	24	0.23
1"	25	29	50	8	24	0.29
1-1/4"	32	36	50	7	21	0.35
1-1/2"	38	42	50	6	18	0.45
2"	50	54	50	5	15	0.55
2-1/2"	63	69	50	5	15	0.88
3"	75	81	50	4	12	1.16
4"	100	108	50	4	12	1.95
5"	125	135	30	4	12	3.00
6"	150	163	30	4	12	3.60
8"	200	214	10	4	12	6.30
10"	254	270	10	4	12	10.00
12"	305	321	10	4	12	14.00
14"	355	375	10	5	15	19.00

Heavy Duty Specifications

Inner Diameter		Outer Diameter	Length	Working Pressure	Burst Pressure	Weight
Inch	mm	mm	Mtr/Roll	bar	bar	kgs/Mtr
3/4"	19	25	50	9	27	0.28
1"	25	31	50	9	27	0.35
1-1/4"	32	40	50	7	21	0.45
1-1/2"	38	48	50	7	21	0.80
2"	50	60	50	7	21	1.10
2-1/2"	63	73	50	6	18	1.30
3"	75	87	50	6	18	1.85
4"	100	116	50	6	18	3.70
5"	125	141	30	5	15	4.70
6"	150	170	30	5	15	7.20
8"	200	216	10	4	12	7.00
10"	254	274	10	4	12	12.00
12"	305	329	10	4	12	18.00
14"	355	379	10	4	12	20.00

Fiber Reinforced PV Sucton Hose - Specifications

Inner Diameter		Outer Diameter	Length	Working Pressure	Burst Pressure	Weight
Inch	mm	mm	Mtr/Roll	bar	bar	Kgs/Mtr
2"	51	66.00	30	5	15	1.10
2-1/2"	64	71.00	30	5	15	1.80
3"	76.20	92.00	30	4	12	2.20
4"	102.50	121.00	30	4	12	3.20
5"	127.50	152.00	20	3	9	4.50
6"	154.50	180.50	20	3	9	5.80
8"	203.50	232.00	12	3	9	8.40

Production Details:

Packaging & Shipping

Company Profile QINGDAO SHANGFLEX TECH CO.,LTD is located in Shandong , China . We supply OEM & ODM flexible hoses, covering PVC HOSE , RUBBER HOSE , DUCTING HOSE, PU TUBE , PNEUMATIC HOSE and HOSE ASSEMBLIES , COUPLINGS , FITTINGS, CLAMPS .
Our factory was established in 2010. There are 3 professional workrooms , 1 material granule production workroom , 1 assembly workroom, 3 standard warehouses , including 100 production lines ,150 skilled technicians ,30 senior technical personnel and 5 engineers. Annual output amounts to 50,000 tons and production capacity per month can meet 500 tons.
Our factory has got ISO9001:2008,ISO14001:2008. All products can be made as the requirement of American Standard , European Standard and Australian standards. FDA , REACH , ROHS , BS3746, AS2070 .
We have professional sales and servie teams. We have exported to more than 50 overseas countries and over 100 steady customers , covering America , Canada , Australia , United Kingdom , Brazil , Agentina , Indonesia , Malaysia , Turkey , UAE,South Africa ,etc.
We are reliable source of " Made in China " . We are professional manufacturer and exporter . Your every inquiry will be followed fast by professional staff.
