10kg, 20kg, 25kg, 30kg, 40kg, 50kg Automatic Seed Gruanlate Powder Automatic Filling and Sewing Bag Packing Machine for Sale

Product Description

Seed Gruanlate Powder Automatic Filling And Sewing Bag Packing Machine For Sale Product Description Suitable for packing dried fruits, fried food, miscellaneous grain, monosodium glutamate, seeds, etc., chemical industry, pet food and many other granular materials.
Feeding is by direct current and vibration, there is a sensor behind the bag gripper, which detects the weight, and then the program inside the machine accepts the signal, for example, weighs the bag after gripping it, and when it reaches the weight that we have set, the program will make the machine stop feeding.
Product Parameters

Filling Machine

Gas pressure: 0.4-0.6Mpa (self-provided gas source) Measuring method: weighing type (industrial electronic weighing) Machine power: 1.5KW Feeding method: DC plus vibration type, three-stage discharging; Packing specification: 20-30kg Material: stainless steel Single-bag error: ± 0.2% Packing speed: 240-600 bags/hour (related to the specific gravity of packaged particles) weight: 250kg Machine volume: Size:800*800*2932mm

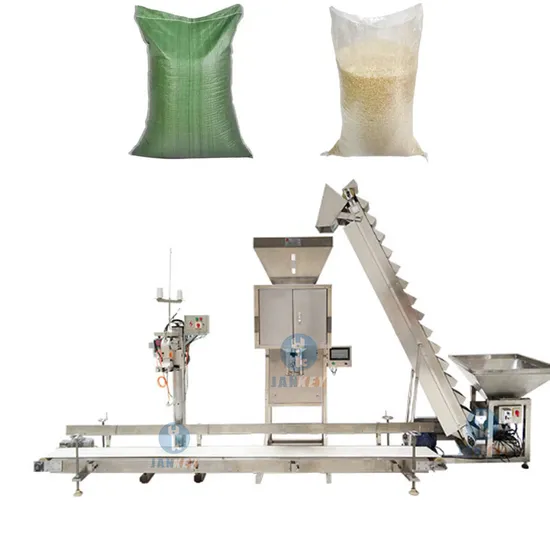

Detailed Photos 1,Lifting Machine
2,Filling and sewing machine
3, It can support adding functions required by customers, such as the hot air outlet machine below:
Our Advantages
Human-machine interface operating system, bag clamping device, more simple operation
PLC control, advanced technology, more reliable use
Belt feeding, faster speed, higher precision
Equipment operating conditions:
Running time: 8000 hours/year Ambient temperature ~10-40ºC. FAQ 1. What is the filling range of the equipment?
10-50kg/bag
2. Does the voltage of the equipment support customization?
It supports customization according to local voltage
3. Does the language control system of the equipment include English?
Yes, it includes English control system
4. How to install the equipment?
Our equipment is usually shipped as a whole machine when it leaves the factory. For packaging safety considerations, some small parts will be appropriately disassembled, and installation guidance pictures or videos will be provided at that time.
5. How to debug the equipment?
A debugging video will be provided before leaving the factory. If you go to the customer's factory, we can provide installation video guidance according to customer needs.
Packaging & Shipping Packaged by export wooden packaging for LCL shipping.
Company Profile R&D Advantage
With more than 30 R&D technicians, the company's annual R&D expenditure accounts for 4%, and its R&D technology ranks the top in China.
Manufacturing Advantage
The company has highly flexible manufacturing and processing capabilities, with more than 50 sets of machining equipment, with the ability of unloading, molding, machining, welding, painting, installation and debugging.
Service Advantage
The company provides professional services covering consulting, equipment selection, drawing design, equipment manufacturing and installation, equipment maintenance.
