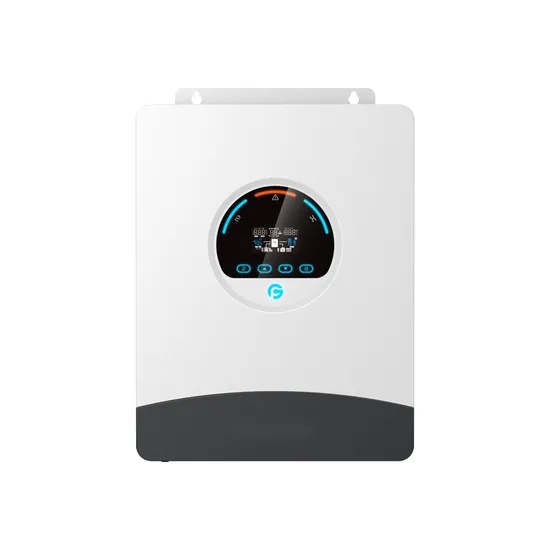

EU Single Phase 48V Low Voltage Battery 6kw off Grid Inverter
Basic Info.
Model NO.
FC-6KW1645
Type
DC/AC Inverters
Power Source
Solar Power
Transport Package
Carton
Specification
444.7*346.6*120 mm
Trademark
Neutral Packing
Origin
Zhejiang, China
Production Capacity
in Stock
Product Description
EU Single Phase 48V Low Voltage Battery 6kw off Grid Inverter| Product Model | FC-6KW1645 | |
| PV (DC Input) | Recommended max. PV input power | 6000W |
| Max. input voltage(Voc) | 500V | |
| MPPT operating voltage range | 85V-450V (@75V start up ) | |
| Number of MPPT | 1 | |
| Max. number of input strings per MPPT | 1 | |
| Max. input current per MPPT | 27A | |
| Max. short-circuit current per MPPT | 35A | |
| On-grid (Bidirection) | Max output power | 11500W |
| Max output current | 50A | |
| Rated grid voltage | 220/230/240Vac | |
| Rated grid frequency | 50/60Hz | |
| Acceptable range | 170-280Vac (For UPS) ; 90-280Vac (For Home Appliances) | |
| Battery parameters (Bidirection) | Battery type | LiFePO4 /Lead-acid |
| Battery voltage range | 40-60Vdc | |
| Rated Battery Voltage | 48Vdc | |
| Max. charge/discharge current | 120A/130A | |
| BMS communication mode | RS485 | |
| Back-up Output (AC Output) | Rated output power | 6000W/6000VA |
| Rated output current | 27.3A | |
| Rated output voltage | 220/230/240Vac 50/60Hz | |
| Parallel Capacity | Max. 12 Units | |
| Surge power | 12000VA 5s | |
| THDv (@ linear load) | <3% | |
| Switching time | 10ms typical (For UPS) 20ms typical (For Home Appliances) | |
| Efficiency | Peak efficiency | 98.00% |
| Max. MPPT efficiency | 99.90% | |
| Protection | Inner protection | √Output short-circuit protection √Output overvoltage protection |
| Surge protection | PV: Type III, AC: Type III | |
| IP rating | IP54 | |
| General parameters | Operating temperature range | -10~55ºC |
| Relative humidity range | 5~95% | |
| Max. operating altitude | >2000m derating | |
| Standby self-consumption | <10W | |
| Installation type | Wall mounted | |
| Cooling mode | Fan cooling | |
| Communication | RS232/RS485/Dry contact/WI-FI | |
| Display | LCD | |
| Mechanical Specifications | Inverter dimensions (L*W*H) | 444.7*346.6*120 mm |
| Net weight | 12.4kg | |
| Carton dimensions (L*W*H) | 560*465*240 mm | |
| Gross weight | 14.6kg | |
| Warranty Period | 3 Years Standard | |
Step 1, please tell us what model or custom size and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed details, you can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
2. Do you have stocks?
Yes, we have stock for some models for quick delivery.
3. When will make delivery ?
If the model do not have stock, Order: 25-60 days after receipt of the full payment.
4. Payment
T/T, L/C, Paypal
6. Transportation
By Fedex, DHL, UPS, EMS, Air freight, Sea freight.5
