Product Description

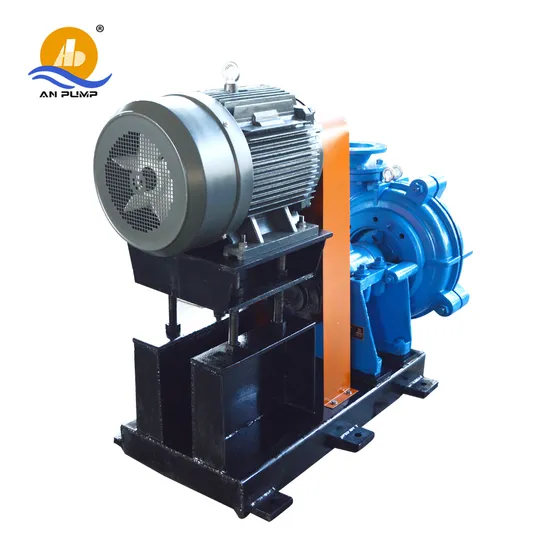

Horizontal Centrifugal Slurry Pump


Product Description
Slurry pump description
AM series slurry pump are cantilever horizontal centrifugal slurry pump.
They are widely used in industry of mining, electrical power, metallurgy, coal, environmental, etc for transportation of abrasive solid slurry.
Mud pump, impurity pump, dredge pump and desilting pump are all belong to category of slurry pump.
Material are vary from corrosion and abrasion degree, high chrome abrosion & corrosion resistance alloy Cr27MoNi, Cr30MoNi are optional.
Slurry pump advantanges are as follows:
1)High concentration, volume concentration reach to 60%, weight concentration reach to 70%;
2)Comprehensive performance is good, high head: long distance and high head transportion, single set head can reach to max 120m, and can be used in series to satisfy much higher head requirements;
3)High flow rate capacity: can be reached 3400m3/h;
4)Good passing ability:gravel pump max passing particles size is 380mm;
5)Diameter size:outlet size from 1" to 22"
6)Widely application: all slurry, mud and bad corrosive medium can be transported, widely used in industry of mining, electrical power, metallurgy,coal, construction etc.
7)High corrosion, abrasion resistance widely material optional: metal flow parts including:A05 (Cr27Mo),A33(Cr30MoNi)A49(Cr30MoNiCu)and rubber material etc. PH value 1.0-14.
8)Our company passed ISO certificate and all of our pumps pass CE certificate, comply with international standards.
9)Driving engine of motor and diesel are available;
10)Kinds of driving method satisfy different space need on site: CR, CZ, CV, ZV;

11)Energy saving and cost reducing: pump itself water conservancy design advanced and mature. In the mode of traditional direct start increasing soft start and frequency start methods, it make sure energy saving and protection devices; Adjust the speed by soft connection mode in order to achieve the maximum utilization and tower results of work.
12)Easy operation, lower noise.


Slurry pump specifications

Type	AM Slurry pump
Flow (m3/h)	13-5000
Head (m)	5-68
Power (kw)	15-1200
Eff. (%)	20-85
Pass Particle Size (mm)	19-135
Material	High Cr Alloy, Rubber

AM series slurry pump construction



Performance Chart


Detailed Photos





Company Profile



Packaging and shipping



FAQ
Q1. Are you a manufacturer?
Yes, we have been in centrifugal pumps manufacturing and marketing industry over 32 years.

Q2. What markets do your pumps export to?
Europe, North & South America, South-East Asia, Africa, Oceanica, Middle East countries. Our overseas agent in Italy, Russia, America and Africa are gradually improving.

Q3. What information should I let you know if I want to get a quotation?
Please let us know the pump capacity, head, medium, operation situation, quantity, etc. As much as your provide, the precision and accurate model selection.

Q4. Is it available to print our own brand on the pump?
Totally acceptable as international rules.

Q5. How can I get the price of your pump?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
