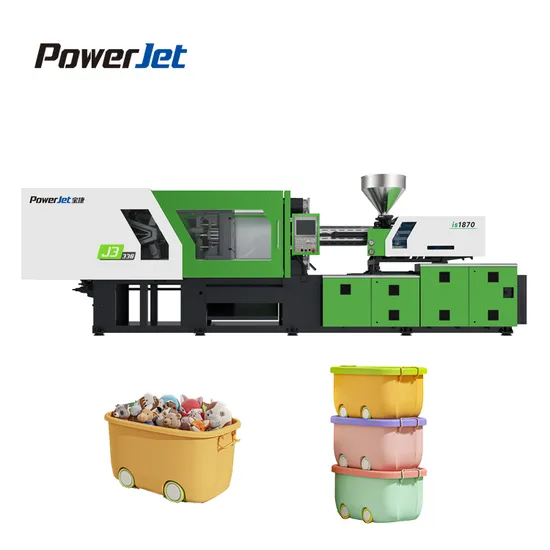

Automatic Servo 300 Ton Plastic Injection Molding Machine for Toys Storage Box Making
Basic Info.
Model NO.
J3-330
Plastic Type
Thermoplastic
Clamping Way
Hydraulic
Certification
CE, ISO9001:2008
Opening Stroke
600 mm
Injection Rate
372 G/Sec
Injection Weight
1287 G
Injection Weight (G)
1219 G
Screw Diameter (mm)
75 mm
Injection Rate (G/S)
358 G/S
Open Stroke(mm)
600 mm
Power (Kw)
24 Kw
Ejector Stroke(mm)
180 mm
Power
48 Kw
Ejector Force(kN)
77 kN
Trademark
Powerjet
Origin
Guangdong, China
Product Description
Product DescriptionSpecification
| DESCRIPTION | | UNIT | BJ330-V6/S6 | |
| LAMPING UNIT | Clamping force | KN | 3300 | |
| | Opening stroke | mm | 600 | |
| | Max.datlight | mm | 1300 | |
| | Platen size | mm | 985*985 | |
| | Space between bars | mm | 670*670 | |
| | Max.mold height | mm | 700 | |
| | Min.mold height | mm | 300 | |
| | Ejector stroke | mm | 180 | |
| | Ejector force | KN | 77 | |
| INJECTION UNIT | Screw diameter | mm | 68 | |
| | Screw L/D Ratio | L/D | 21 | |
| | Injection Pressure | MPa | 169 | |
| | Shot volume | cm3 | 1126 | |
| | Shot weight (ps) | g | 1005 | |
| | | oz | 35.4 | |
| | Injection rate | g/s | 328 | |
| | Screw stroke | mm | 310 | |
| | Screw speed | rpm | 193 | |
| POWER UNIT | Hydraulic system Pressure | MPa | 17.5 | |
| | Pump motor power | KW | 37/50 | |
| | Heater power | KW | 18 | |
| GENERAL | Oil tank capacity | L | 460 | |
| | Machine weight | T | 11 | |
| | Machine dimensions (L*W*H) | m | 6.8*1.62*2.3 | |
Company Profile
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 24 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.
Q2: Delivery time
A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly).
Q3: Where is your factory located?
A3: Our factory is located in No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.
