XK5040 XK5032 CNC Vertical knee-type milling machine
| US$3,988.00-15,898.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
XK5040/5032
Type
Tool Milling Machine
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table longitudinal feed(auto)
6-3200mm/min
Table cross feed(auto)
6-3200mm/min
Table vertical feed(auto)
3-1600mm/min
Spindle hole taper
ISO 50(7:24)
Spindle speed step
18step
Spindle speed range
30-1500r/min
Max.swivel angle of head
±45°
Transport Package
Standard Export Packaging
Specification
4200/2900kg
Trademark
MFGSP
Origin
China
Production Capacity
2000sets/Year
Packaging & Delivery
Package Size
276.00cm * 216.00cm * 225.00cm
Package Gross Weight
4250.000kg
Product Description

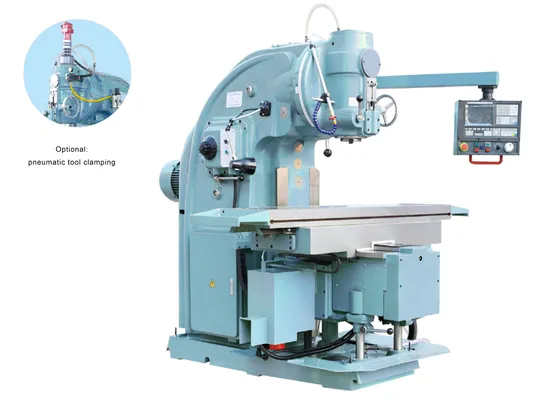

CNC Vertical knee-type milling machineStandard equipment: SIEMENS808D
Optional equipment: The fourth axis CNC rotary table
CNC dividing head
CNC system:FANUC,Mitsubishi,GSK980MDC
| Specification | Units | XK5040 | XK5032 |
| Table size | mm | 1700*400 | 1600*320 |
| T slots(N/W/D) | mm | 3/18/90 | 3/18/70 |
| Longitudinal travel | mm | 1000 | 900 |
| Cross travel | mm | 350 | 310 |
| Vertical travel | mm | 375 | 350 |
| Table longitudinal feed(auto) | mm/min | 6-3200 | |
| Table cross feed(auto) | mm/min | 6-3200 | |
| Table vertical feed(auto) | mm/min | 3-1600 | |
| Distance between spindle and table surface | mm | 90-465 | 35-385 |
| Spindle hole taper | - | ISO 50(7:24) | |
| Spindle speed step | step | 18 | |
| Spindle speed range | r/min | 30-1500 | |
| Max.swivel angle of head | - | ±45° | |
| Stroke of spindle quill | mm | 85 | 70 |
| Power of spindle motor | kw | 11 | 7.5 |
| Torque of X/Y/Z axis AC servo motor | N.m | 15/15/23 | 10/10/18 |
| Overall size | mm | 2760*2160*2250 | 2040*1800*1910 |
| Net weight | kg | 4200 | 2900 |
