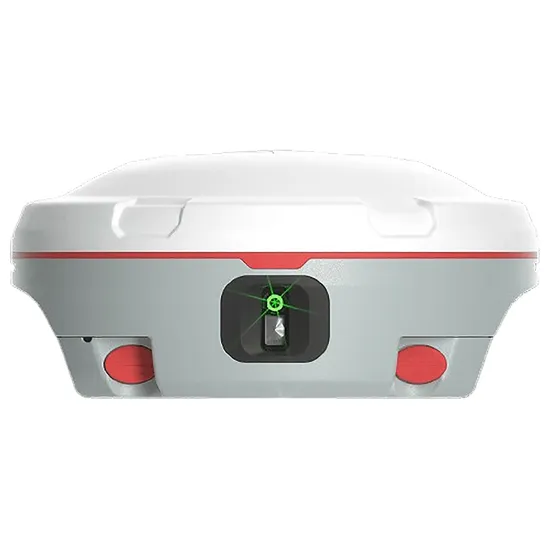

Sino Mars PRO Laser Rtk Receiver Dual Frequency Land Surveying Instrument Differential GPS Laser Rtk
Basic Info.
Model NO.
Mars Pro
Operating Principle
Interferometric Type
Brand Name
Sino
Model Number
Mars PRO
Product Name
Sino Mars PRO Lasrer Gnss Receiver Rtk
Contellation
GPS, Glonass, Beidou, Galileo
Static Accuracy
2.5mm +0.5ppm, 5mm+0.5ppm
Rtk Accuracy
8mm+1ppm, 15mm + 1ppm
Channel
1668 Channels
Internal Momery
32GB
Application
Topographic Survey, Engineering Survey, Marine Sur
Special Features
LED Screen, Tilt Sensor, Ebuble, Two Battery
Accuracy
1mm
Vertical Lines
1
Horizontal Line
1
After-sales Service
3 Years
Warranty
3 Years
Transport Package
1 Set Packed in 2 Cartons
Trademark
Sino
Origin
China
HS Code
9015800090
Production Capacity
20000PCS/Year
Packaging & Delivery
Package Size
70.00cm * 55.00cm * 45.00cm
Package Gross Weight
30.000kg
Product Description
| Specifications | ||
| Performance | Channels | 1668 |
| GPS | L1C/A, L1C, L2P, L2C, L5 | |
| BDS | B1I, B2I, B3I,B1C,B2a,B2b | |
| GLONASS | G1, G2, G3 | |
| Galileo | E1, E5a, E5b, E6c, E5 AltBOC | |
| QZSS | L1C/A, L2C, L5, L1C | |
| IRNSS | L5 | |
| SBAS | L1C/A | |
| Signal Re-acquisition | ≤1s | |
| RTK Initialization Time | ||
| Network RTK | Horizontal 8 mm + 0.5 ppm | |
| Vertical 15 mm + 0.5 ppm | ||
| Post Processing Kinematic(PPK) | Horizontal 5 mm + 1 ppm | |
| Vertical 5 mm + 1 ppm | ||
| Static and Fast Static | Horizontal 2.5 mm + 0.5 ppm RMS | |
| Vertical 5 mm + 0.5 ppm RMS | ||
| Signal Baseline RTK | Horizontal 8 mm + 1 ppm RMS | |
| Vertical 15 mm + 1 ppm RMS | ||
| DGPS | ||
| SBAS | Horizontal 0.5m RMS | |
| Vertical 0.8m RMS | ||
| Standalone | 1.5m 3D RMS | |
| Laser Tilt Measurement | ≤5.5cm (5m range,≤60°Tilt in Laser mode) | |
| Physical | Dimension | Φ15.5cm x 7.3cm |
| Weight | 1.2kg with two batteries | |
| Working Temperature | -40ºC~+65ºC (-40°F to 149°F) | |
| Storage Temperature | -40ºC~+85ºC (-40°F to 185°F) | |
| Humidity | 100% non-condensing | |
| Waterproof and Dustproof | IP67 | |
| Shock | Survive a 2m drop onto the concrete | |
| Voltage | 7-28VDC | |
| Power Consumption | 1.8W | |
| Li-ion battery capacity | 2 x 3400 mAh | |
| Memory | 32 GB | |
| Battery life | 20h | |
| Communication | 1 Serial port (7 pin Lemo) | Baud rates up to 921,600 bps |
| Datalink | Tx/Rx with full frequency range from 410-470MHz | |
| Transmit power: 0.5W, 1W, 2W adjustable | ||
| Air Baud Rate: 9600 / 19200 adjustable | ||
| Range:3-5km | ||
| Protocol type: Transparent/TT450S/South/Mac/SATEL | ||
| WIFI/4G modem | - LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 | |
| - LTE-TDD:B38/B39/B40/B41 | ||
| - WCDMA: B1/B2/B4/B5/B6/B8/B19 | ||
| - GSM: B2/B3/B5/B8 | ||
| Position data output rates | 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz | |
| 2 LEDs | indicating Satellites Tracking and RTK Corrections data | |
| 1 Display | OLED Display | |
| Bluetooth | V 4.0 protocol, compatible with Windows OS and Android OS | |
| Calibration-free IMU integrated for Tilt Survey | Up to 60°tilt with 2.5 cm accuracy | |
| Laser | Range | 10m |
| Accuracy(room temperature) | (3-5)mm + 1ppm | |
| Measuring Frequency | Classic Value: 3Hz | |
| Maximum Value: 5Hz | ||
| Laser Injection Power | 0.9mW~1.5mW | |
| Working Temperature | -20ºC~+50ºC | |
| Storage Temperature | -30ºC~+60ºC | |
