Low Frequency UPS 3 Phase in 1 Phase out High Power Td31-40kVA Online UPS Industry Use Uninterrupted Power Supply with Transformer 384VDC

Low Frequency UPS 3 Phase in 1 Phase out High Power Td31-40kVA Online UPS Industry Use Uninterrupted Power Supply with Transformer 384VDC

US$2,850.00-2,950.00 1 Set (MOQ)

Basic Info.

Model NO.
TD31 40KVA
Protection
All of Overvoltage, Short Circuit, Overcurrent etc
Application
Industry
Classification
Lighting/Power
Standby Time
Long-acting Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Small Type
Equipment Mode
Decentralized
Brand
Wahbou
Input Voltage Range
220V +- 25%
Working Frequency Range
40-70Hz(Settable)
Output Power Factor
0.8
Battery Rated Voltage
192VDC
Transport Package
Neutral Carton Box
Specification
560x260x717mm
Trademark
WAHBOU or OEM
Origin
Guangdong, China
HS Code
8504402000
Production Capacity
100000 Sets/Year

Packaging & Delivery

Package Size
83.00cm * 52.00cm * 114.00cm
Package Gross Weight
285.000kg

Product Description

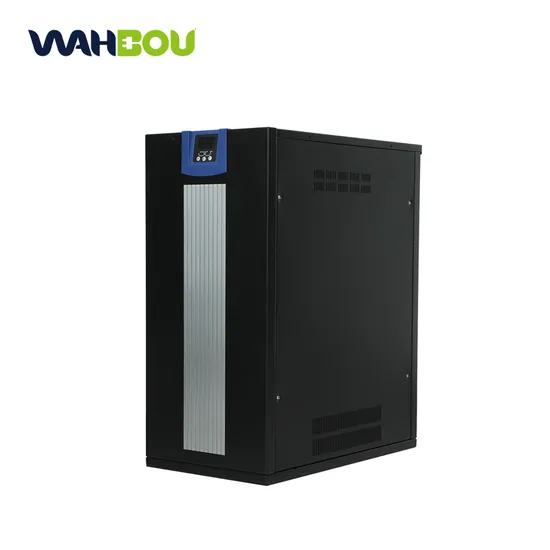

Low Frequency UPS 3 Phase in 1 Phase out High Power TD31-03 40kVA Online UPS Industry Use Uninterrupted Power Supply with Transformer
Our Advantages
Product Description
Product Parameters
Model TD31 10KVA TD31 15KVA TD31 20KVA TD31 30KVA TD31 40KVA
Rated Power 10kVA/8kW 15kVA/12kW 20kVA/16kW 30kVA/24kW 40kVA/32kW
Input Rated Voltage and Range 380Vac ±25%
Input Form 3P4W+G
Frequency Range 40Hz-70Hz (settable)
Bypass Input Rated Voltage and Range 220Vac±25%
Input Mode 1P2W+G
Output Rated Voltage 220Vac
Output Mode 1P2W+G
Static Voltage Accuracy ±2%
Dynamic Voltage Transient ≤9%
Distortion of output voltage waveform ≤3%(liner),≤8%(non-liner)
Power Factor 0.8
Output Frequency 50Hz/60Hz
Output Overload 105%±5%≤ Load: Overload warning;
105%±5%<Load≤125%±5%: Convert to bypass output after 2 mins; 125%±5%<Load≤150%±5%: Convert to bypass output after 30s;
Load>150%±5%: Convert to bypass output after 500ms.
Battery Rated Voltage 192Vdc 384Vdc
Environment Operating Temperature 0ºC-40ºC
Operating Humidity 20%-95% (non-condensing)
Dimension (LxWxH) mm 560x260x717 655x370x900 830x455x1055 830x515x1135
Weight 79.5kg 122kg 195kg 210kg 285kg
Detailed Photos
Company Profile
Certifications
Applications
Exhibition & Customer Visit
If any questions please contact our sales, and You are Welcom to visit us anytime!
Wahbou Power equipment
