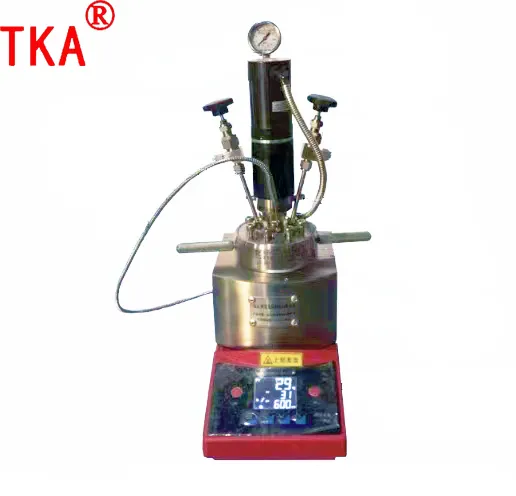

Mechanical Mixing Chemical Micro High Pressure Reactor

Product Description

Mechanical Mixing Chemical Micro High Pressure Reactor
Product Description
Function introduction
When this product is used for Chemistry, chemical, ultra-high temperature and high pressure and negative pressure synthesis reactions or catalytic reactions, it is necessary to simultaneously measure pressure, temperature, speed measurement, add inert gas to protect the pressure, and realize online sampling or online feeding, etc. Condition experiment, used for stirring reaction of various flammable, explosive, highly toxic, precious media and other chemical media with strong penetrability. , fluorination, hydrogenation and other reactions the most ideal leak-free reaction equipment. It has super magnetic stirring function and programmed temperature control function.
Products Parameter

Volume	10ml
Material	UL316L
Working pressure	≤12.5MPa
Valve and connectionmaterial	SU316L
Reactor chamber	fully encapsulated in PTFE
Temperature Range	0-300ºC
Evaporatingrange	0-1200 rmp
Safe pressure	12.5Mpa
Pipe outer diameter	3mm
wall thickness	1mm
Stirring power	100W
Toom temperature	280 °C
Temperature control accuracy	<±0.5 °C
The kettle cover is distributed as two gas channels and one liquid sampling, one for safe pressure relief, one for pressure display, and one for temperature measurement in the kettle.
The whole device is equipped with a set of special hydrogenation and inflation hoses for high-pressure hydrogen cylinders.

It is suitable for simulating reactions under high temperature and high pressure conditions, hydrothermal synthesis, nanomaterial synthesis, carbon dioxide CO2 reduction, carbon dioxide CO2 reduction to methanol, carbon dioxide CO2 reduction to methane CH4, reduction and degradation of nitrogen oxides NOx, high-pressure photocatalytic degradation of formaldehyde, etc. field. Catalytic reaction, Fischer-Tropsch reaction, hydrogenation reaction, polymerization reaction, homogeneous reaction and carbon dioxide supercritical reaction, etc. The product has obtained the national patent patent number: 201003127547.0 Application Field
Package&Shipping
Package Detail
1) Wooden packing
2) The goods can be shipped by sea, air or train, small goods or spare parts will be shipped by express.
3) You can choose your own freight forwardwe as well.
4) Door to Door Delivery to save your energy and time. We'll take the all risks during transportation.
Shipping Details
1) AMERICA:3-8 working days.
2) ASIAN:3-8 working days.
3) EUROPE:5-10 working days.
4) OCEANIA:4-9 working days.
5) AFRICA:7-13woring day.
Company Profile
Xi'an Taikang Biotechnology Co., Ltd, is a famous manufacturer of Lab equipment located in the central China. Now has TAIKANG, TKA two well-known brand trademarks. The main products include ultra-high temperature and high pressure reactor, high pressure photochemical reactor, supercritical high pressure reactor, high pressure glass reactor, micro high pressure reactor, high pressure ultrasonic reactor, Ultra-high temperature hydrothermal synthesis reactor, photocatalytic reactor, visual catalytic reactor, hydrothermal synthesis reactor, rotary evaporator, parallel synthesis reactor, high and low temperature circulator, high and low temperature high pressure tubular reactor and other equipment and so on.
Specialize in this field for more than 20 years,TKA brand instrument has own high reputation in more than 70 countries and regions, provide technical support for tens of thousands organizations to solve problems within their research, special for university, research institutes, industries, inspection agencies, etc. Promoting technology progress and improving human life is TKA social mission.
Exhibition Show
Certifications
FAQ
Q1:Are you trading company or manufacturer?
A1:We are professional manufacture of lab equipment and we have our own factory which is a high-tech enterprise integrating R&D, production and sales. And welcome to visit our factory.
Q2: How long is your delivery time?
A2: Usually, delivery time is 30-45 days after receiving your payment.
Q3:How to shipping the replacement parts?
A3:We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.
Q4: How about your quality warranty ?
A4: Normally all TKA products are supplied with a warranty of 12 Months from the date of shipment.
Q5: Do you accept OEM and ODM orders?
A5: Yes,We accept.
Q6:What is your terms of payment?
A6:Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Made in China. you will get 100% payment refund if we can't meet agreed delivery time.)
Q7:Can we visit your factory?
A7: Welcome visit our factory.
