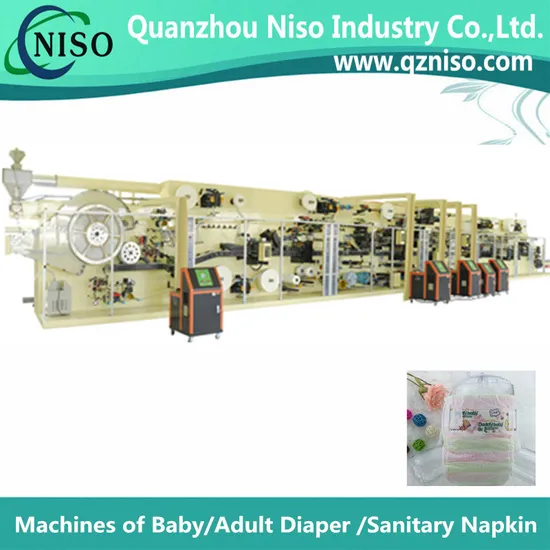

Full-Automatic High Speed Baby Diaper Making Machine (YNK500-SV)

Product Description

Full-automatic high speed Baby Diaper Making Machine (YNK500-SV)

Quick Details

Condition	Used
Year	2007 year
Product Type	Diaper Machine
Processing Type	Full-automatic high speed Baby Diaper Making Machine (YNK500-SV)
Place of Origin	Fujian, China (Mainland)
Model Number	YNK500-SV
Certification	CE,ISO certificates
Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas
Stable:	yes
Size of diaper:	S, M, L, XL
Finished product:	baby diaper
Control system	full-automatic
Waste rate	less than 2%
Operators	6-8 operators including packing baby diaper

Main Technical Parameter

Designed production speed	600 pieces/min
Stable production speed	500 pieces/min(or as per customers designed)
Machine power	three-phase five-wire(380V, 50HZ)
Machine capacity	about 300-350KW(exclude hot melt applicators and air compressor
Machine size	30.0m*7.0m*3.5m(L*W*H)( (Can be customized)
Machine weight	about 60 Ttons(whole production line)
Air pressure	0.6-0.8Mpa

Main Function Features
1.full-automatic with PLC control and touch screen;
2.High-speed teeth-like crusher;
3.Web-wheel molding;
4.SAP auto adding with amount control;
5.Servo unwinding,auto-tension control and auto splicing for raw material;
6.Auto reject for wasted & rejected product,auto detect & alarm for material exhausted;
7.Phase adjusting during running without stop;
8.Diaper tri-folding or bi-folding;
9.Diaper auto counting & stacking.

Packaging & Delivery
Packaging Details: wooden cases and plastic film for full automatic high speed baby diaper making machine
Delivery Details: within 120days Baby Diaper Machine

Models

Model	Driven mode	Speed(PCS/MIN)	Weight(T)	Capacity	Machine size(L*W*H)
YNK500SV	full servo driving	500-600	60	330kw	31*8*5.5m
YNK450HSV	semi-servo driving	400-450	60	240kw	27*8*5.5m
YNK400FC	inverter driving	400-450	60	190kw	27*8*5.5m

Our Services
Excellent After-sales service
1. You can send technicians to our factory to learn operating the machine before delivering
machine for 1-2 month.
2.When the machine arrive at your workshop, we will send technician to your workshop to
install, test the machine and train your workers.
3. If you need 1-3 Chinese technicians to work for you, we can help you to find them.
Why choose us
1.We can do full support for your complete project, from machine's
installment, supplying raw materials, designing your factory layout, workers training to
final production.
2.We can offer you very good machines and service at good price.(we have our own parts processing workshop)
3.We are factory manufacturer, not trading company.

Packing
