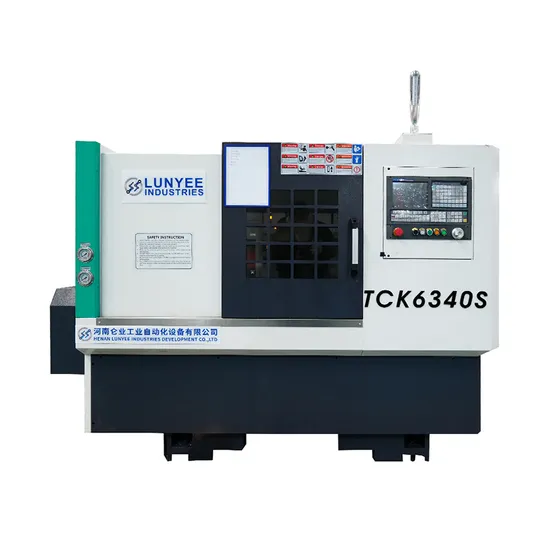

High-End Advanced Numerical Control System Slant Bed High Precision 400mm Tck6340s CNC Milling Machine
Basic Info.
Model NO.
TCK6340S
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Max.Swing Dia. Over Bed
400mm
Max.Swing Dia. Over Slide
140mm
Max.Processing Length
390 (Cutter Row) /300 (Cutter Tower 8 Stations)mm
Max. Bar Capacity
39/44mm
Max, Processing Diameter (Plate)
400 (Cutter Bank) /380 (Cutter Tower 8 Stations)mm
Spindle Speed
50-3500r/Min
Spindle Shift Mode
Stepless Speed
Spindle Motor Power
5.5kw
Chuck Type
Hydraulic Chuck/Chuck
Chuck Size
6/8inch
X Axis Rapid Traverse
12m/Min
X Axis Travel
400mm
Z Axis Travel
400mm
Z Axis Servo Motor Torque
6n.M
X Axis Servo Motor Torque
6n.M
Transport Package
Wood Package/Wood Frame
Specification
2600kg
Trademark
Lunyee
Origin
China
Production Capacity
200 Sets/Month
Packaging & Delivery
Package Size
239.00cm * 153.00cm * 178.00cm
Package Gross Weight
2600.000kg
Product Description
High-end Advanced Numerical Control System Slant Bed High Precision TCK6340S CNC Machine ToolsProduct Parameters
| Specifications | Unit | TCK6340S |
| Max.swing dia. over bed | mm | 400 |
| Max.swing dia. over slide | mm | 140 |
| Max.processing length | mm | 390 (cutter row) /300 (cutter tower 8 stations) |
| Max. bar capacity | mm | 39/44 |
| Max, processing diameter (plate) | mm | 400 (cutter bank) /380 (cutter tower 8 stations) |
| Spindle nose | GB59001 | A2-5 |
| spindle bore | Ф/mm | 49/56 |
| Spindle speed | r/min | 50-3500 |
| Spindle shift mode | Stepless Speed | |
| Spindle motor power | KW | 5.5 |
| Chuck type | Hydraulic chuck/chuck | |
| Chuck size | Inch | 6/8 |
| X axis rapid traverse | m/min | 12 |
| Z axis rapid traverse | m/min | 12 |
| X axis servo motor torque | N.m | 6 |
| Z axis servo motor torque | N.m | 6 |
| X axis travel | mm | 400 |
| Z axis travel | mm | 400 |
| Guide way type | linear | |
| Tool post type | Knife bank (optional tower) | |
| Tool shank size | mm | 20x20/Ф25 |
| Total rated power | KW | 12 |
| Total rated current | A | 26 |
| Net weight | kg | 2600 |
| Machine dimension(LxWxH) | (mm) | 2390x1530x1780 |
Applications
Company Profile
FAQ
Q: Are you trading company or manufacturer?
A: We are the manufacturer for 15 years in China.
Q:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production→cargo ready → balance/delivery → further cooperation.
Q: Did you test all the goods before they were shipped?
A: Yes, we test every product before delivery, the quality can be fully guaranteed.
Q:Do you accept product customization?
A:Yes, we will try our best to meet your requirements.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted, Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
Q: Is your price competitive?
A: Only good quality product we supply. Surely we will give you best factory price based on superior product and service.
If you have any needs, please contact me in your free time.
