Rice & Wheat & Corn Combine Harvester for Sale

Product Description

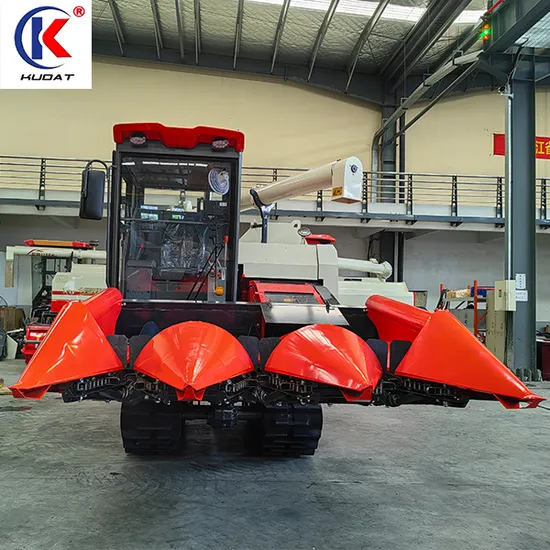

4LZ-6.0C Corn Combine Harvester
Product Description
Chassis Section
1. Unique chassis design with high load capacity ,chassis ground clearance reaches 650 mm which makes good passing performance in muddy paddy.
2. Unique thrust wheel design features long life time.The outer wheel body is widened to 48mm (the widest of the same model), which increases the contact area with the track and effectively delays the service life of the track.
3. Unique floating wheel design - more comfortable over the field.
4. The guide wheel adopts four-lip self-rotating compression type attached shaft oil seal, which is multi-layer waterproof, and effectively prevents the entry of muddy water and delays the service life.
5. Upgrade tension structure features with high reliability.
Threshing & Cleaning Section
1. Adopts big threshing cylinder to increase hitting area and extend hitting time to achieve better threshing performance.
2. The unique belt drive structure makes transmission easier.stable power output and low maintenance cost.
3. Efficient sorting structure has higher sorting effect
Header & Conveying Section
1. Upgraded reel structure with spring tooth features good anti wind performance.
2. The wheel dial adopts a new overall structure, the diameter of the spindle is thickened, the bearing load is high, and the pulling is smoother.
Product Parameters

Item	Unit	Technical Parameter
Product Model	/	4LZ-6.0C Full Feed Wheat & Corn Combine Harvester
Structure	/	Full feed tracked self-propelled
Engine	/	4-Cylinder 4-stroke
	kW	75KW / 102HP
	r/min	2400
Feeding Capacity	kg/s	6
Unloading type	/	Automatic unloading
Overall Dimension	mm	5170*2620*2930
Luxury Cab	/	NO (for option)
Cutting Header of Corn Combine Harvester
Item	Unit	Technical Parameter
Model	/	4YT-3D
Out Diameter (L*W*H)	mm	2500*2350*780
Rows	row	3
Weight	kg	600
Standard Spacing	mm	750-800
Working Width	mm	2250
Working Efficiency	mu/h	6~8
