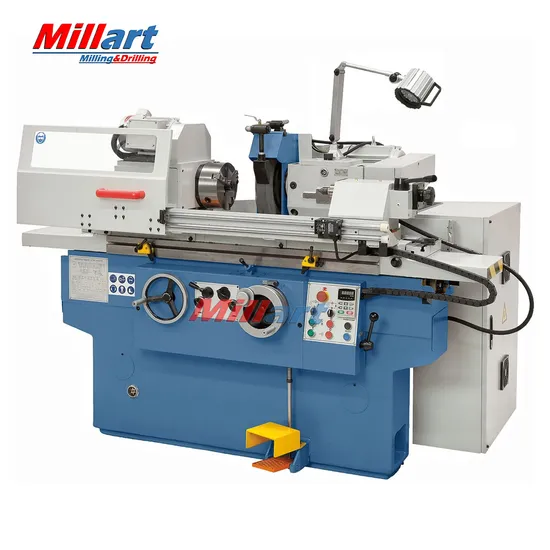

M1320h High Precision Cylindrical Grinding Machine
| US$8,000.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M1320H
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE
Condition
New
External Grinding Dia
8-200
Center Height
135
Transport Package
Wood Case
Specification
CE SGS ISO9001 ROHS
Trademark
L&T
Origin
Tengzhou China
HS Code
84592900
Product Description
M1320H High Precision Cylindrical Grinding MachineFeature:
This machine is suitable for grinding cylindrical, conical shape internal, external and end face of various middle and small size work piece.
With strong rigidity High precision High grinding efficiency.
It has strong cutting function Rigid
Grinding head has the certain cutting edge
Applicable to small batch production in the workshop and the use of the tool machine shop
Technical Parameter :
| Specification & Model | Unit | M1320H x500 | M1320H x800 |
| External grinding dia | mm | 8-200 | 8-200 |
| Internal grinding dia | mm | / | / |
| Center height | mm | 135 | 135 |
| Max travel of table | mm | 650 | 950 |
| Hydraulic traverse speeds | M/min | 0.1-4 | 0.1-4 |
| Max. Work piece weight | kg | 50 | 50 |
| Grinding length external/internal | mm | 500 | 800 |
| Swivel range of grinding wheel | . | -5-+9 | -3-+7 |
| Max.peripheral speed of grinding wheel | M/s | 38 | 38 |
| External wheel size | mm | Max dia400*50*200 Min dia280*50*203 | |
| Internal wheel spindle rotating speed | R/min | / | / |
| Head and tailstock center taper | MT4 | MT4 | |
| Machine motor power | kw | 5.625 | 5.625 |
| Overall dimension | mm | 2500*1600*1500 | 3000*1600*1500 |
| Machine weight | kg | 2500 | 3000 |
| Working accuracy | |||
| roundness | um | 1.5 | 1.5 |
| Uniformity of dia longitudinal section | um | 5 | 5 |
| Surface roughness | um | Ra<=0.32 | Ra<=0.32 |
