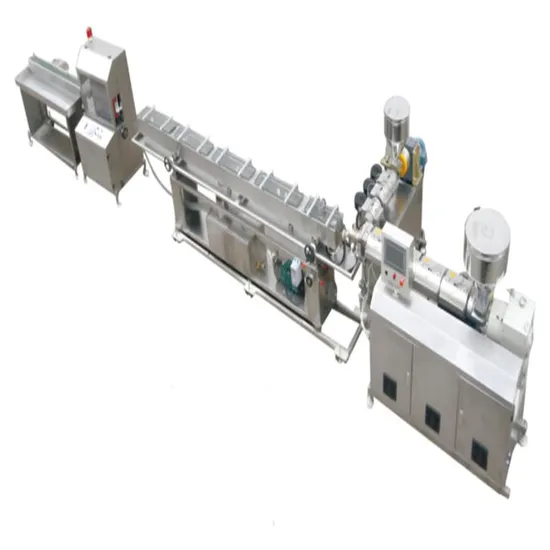

High-Accuracy Automatic Trachea Cannula Medical Pipe Extrusion Line

Product Description

Trachea Cannula Medical Pipe Extrusion Line Detailed Photos

Product Description

Produces various types of precision medical catheters, such as tracheal tubes, reinforced tracheal intubation tubes, infusion tubes, urinary catheters, multi-lumen tubes, and Precision medical catheters Applicable MaterialsMedical PVC Product Parameters

Main engine	Model	L/D	Motor power	Extrusion volume	Control method
	SJ55/SJ65 available	28:1	11KW-15kW	2-65kg/h	Fully computerised control with intelligent
Auxiliary machine	SJ25/SJ35 available	28:1	2.2KW-4kW	1-12kg/h	Temperature meter control optional
Mould	Full set of tracheal tube moulds or can be customized according to the required specifications of various specifications of medical catheter moulds.
Cooling and fixing Shape water tank	Specification	Sizing method	Refrigeration power	Refrigeration method	Operation method
	4m-6m available	Vacuum Sizing	5P or 10P	Air-cooled or water-cooled optional	Three-dimensional adjustable frame
Laser Diameter Measuring Instrument	Non-contact laser on-line diametral measurement with an accuracy of 0.003mm, single- and dual-coordinate models available.
Computer traction Cutting machine	Pulling method	Belt size	Pulling speed	Cutting method	Control method
	Upper and lower double belt	Length:600mm Width:60mm	0-60m/min	Servo motor flying cutter cutting (with alcohol wetting knife)	Traction, cut off, output send all computer centralised control, colour touch screen human-machine interface operation
Collection conveyor	Belt conveyor, stainless steel collection chute, blowing collection device
Winding machine	Dual-position rewinding, quick-change disc device, micro-tension control system for hose (some machines are optional).

FAQ

What are the raw materials used?
The main materials used in world-renowned electrical components. We can also make any custom design for you according to your needs.
How long does it usually take for me to receive the equipment?
Depends on whether you want to do customization your abrasive or not, and also depends on the speed of customs clearance and logistics, but we can guarantee to ship regular abrasive machine in less than 30 business days.
Any benefits for abrasive machine from China?
In a word, China has a much better industry chain. There may be manufacturers of abrasive and packaging in India, Vietnam and Malaysia, but HG-Abrasive can guarantee that our prices can be on par with theirs and our quality, service far exceeds your expectations.
When can I get an engineer from you?
Contact our sales staff when you have completed the preparation conditions (water, electricity, air supply, production materials). We will send an engineer to install your machine and train your staff to use it. Usually, when you are ready, you can contact our sales staff and cooperate with us to get a visa for the engineer, who will arrive within 15 days.
What about the details of the packaging? To ensure the integrity and safety of product packaging, main products are packed in plastic film or export plywood boxes, and auxiliary products are packed in thick cartons.
Do you provide customized service?
We can design the machine according to your requirements (material, power, size, etc.). We will also provide you with expert guidance at the same time, based on our many years of experience in the industry.
How will my machine be installed once it arrives? How much does it cost?
We'll dispatch an engineer to your facility to assess the situation, install the machine and train your staff on how to operate it. The customer pays for round trip airfare, accommodation and USD100/day/person.
Are you a manufacturing or a trading company?
We are a factory, and we offer factory direct prices with excellent quality and worry-free service. Please come and see us here!
What is your guarantee or warranty if we buy your machine?
We offer you a 1-5 years warranty on our high-quality machines and lifetime technical support.
