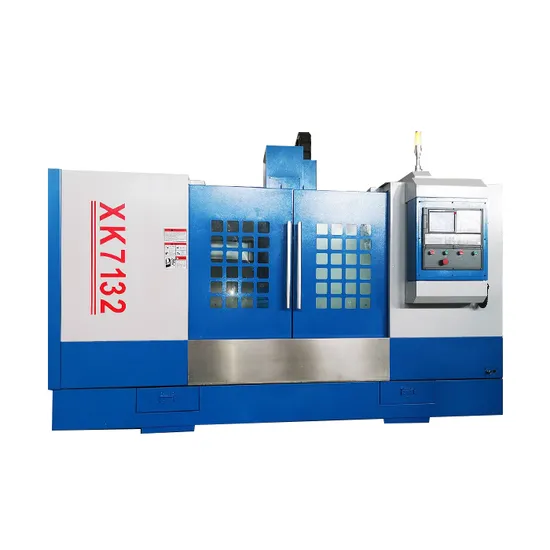

cnc machine XK7132 mini cnc milling machines

Product Description

Product Description
Main Specification:

Specification	XK7132
Table size	1500x330mm
X/Y/Z axis travel	900x450x500mm
Spindle motor	5.5kw servo motor
Distance between spindle center and surface column	420mm
Spindle taper	BT40
Machine controller	GSK980, SIMENS 808D
Rapid speed of X/Y/Z axis	12m/min
X/Y/Z way motor torque	X/Y 7.7N/M Z 10N/M
Position precision	±0.02/300m
Spindle speed	20-8000rpm
T-slot	3/18/85
Table load	500kgs
Distance from spindle to table	100-600mm
Packing size	2200x2100x245mm

Detailed Images
- CNC system optional:
GSK980MDi, Siemens, Fanuc
- 4th axis optional:
Full cover optional:
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
