Hot Sale Factory Direct 1inch Manual Hose Crimping Machine Uniflex P16HP Model

Product Description

Product Description
Hydraulic hose crimping machine Application1. for hose up to 1inch, light and portable for moving;2. hose after crimping do not have the problem of leaking, heads off, ellipticity.3. this model can be used under extreme cold temperature and outdoors.
4. easy to operate and convenient for customers.4. special dies can be offered as requested.

SPECIFICATIONS FOR HYDRAULIC HOSE CRIMPING MACHINE
Product name	Hose crimping machine	Machine model	JYC-P16
Machine type	hydraulic crimping tool	Application	crimping hose
Crimping range	6-25mm(1/4--1 inch)	System pressure	31.5Mpa
Crimping force	3200KN	Operation mode	manual
Dimension	50*40*40cm	Weight	37kg
Quantity of dies	6sets	Dies number	14.16.19.23.27.31
Oil of tank	5L	Accurcy	0.01mm

P16 Hose Crimping Machine Features1)Hydraulic cylinder and piston are all made of integrative precise steel casting. Comparing with welding technique, the hydro cylinder and piston will not transform when they are made. Pistons and moulds are driven to move by hydraulic power, so they have the advantage of stability and high speed, and avoid the mould locking phenomenon happens. The hydro cylinder locking systems is designed scientifically, so it is easy to withhold various anomalous connector bends.
2)2)Our crimping machine have two overflow valve. The high pressure overflow valve works when pipes are crimped. High pressure overflow valve could ensure the heavy pressure and high quality products, The low overflow valve works when molds are opened. Low pressure overflow valve could avoid oil seal bearing heavy pressure ,so as to increase its life period.

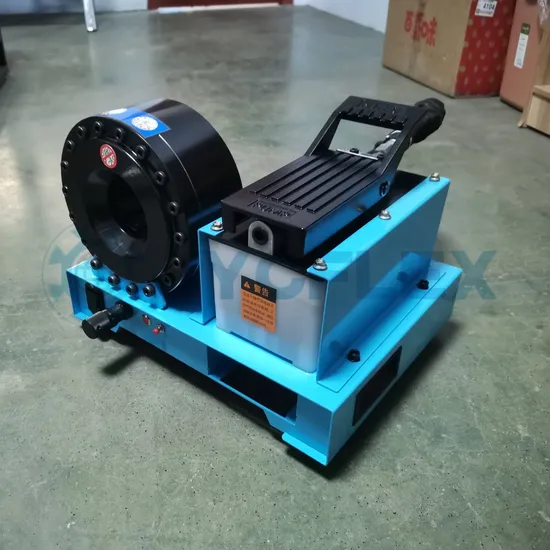

Product Display
Oil pump is set and submerged into the oil tank, so it could reduce the noise and radiate the heat quickly. The oil pump which is driven by electrical motor drive the piston move by pumping the hydraulic oil out. When the mold base move forward, the mold could give pressure to hose joint. When the shrinkage reach to the pre-set number, the pressure stop and the solenold valve reverse.At this time, the piston move backward , the mold open and the work finish.
Machine parts
Name:Dies
Have been specially heat treated.
Keep stable and strong.
Name:Control light
has control light to show the crimping status
Name:Pump
Enerpac original pump make crimping smoothly Packaging & Shipping

PACKAGING
Size	50*40*40cm
Weight	37kg
packaging details	the normal package is wooden box(50*40*40cm).we could customize package according to customer request.we will do every effort to make sure the machine protected to deliver to our customer's hand

Shipping
we could offer international express,shipping by the sea or other ways.
Our Service
Pre-Sales Service* Inquiry and consulting support.
* Sample testing support.
* View our Factory.After-Sales Service
*24x7 service
* Training how to install and use the machine
* Engineers available to service machinery overseas
Certifications
We have CE certificate and ISO certification
and can also provide certificate of origin and various inspection reports according to customer requirements to assist customers in customs clearanc
Company Profile
(1)Our enterprise built up for 16 years!
(2)Made up of 10 years experienced professional R & D Worker and QC persons.
(3)Our hydraulic products will be checked in each step, then double checked by QC, last packed and delivered to warehouse.
(4)Our hydraulic crimping machines get the CE certification.
(5)Our factory have advanced industrial production process to save expenses,
and offer all our customers a good price to win in their market!
(6)We have the deep desire to cooperate with you, we are experienced and have the faith to make you satisfaction with our hydraulic products and service.
(7)We have customers in UK, US, Russia,Australia,UAE,Kenya,Bolivia,Philippines, etc.
(8)Email me or call me directly, we can't wait to see you!
Customers visit
Customer feedback
FAQ:
1.OUR SERVICE:
(1)inquiry and consulting support.
(2)24*7service.
(3)training to how to install and operate the machine.
(4)engineers available to service machinery overseas.
2.OUR ADVANTAGES
(1)BEST QUALITY:Our machines will be inspected before arrange delivery, and will be arranged for shipment only after they pass the test.
(2)Multiple modes of trade terms:we could offer EXW.FOB.CIF.DOOR TO DOOR service,easy for customers.
(3)FAST DELIVERY:We produce many sets of hose crimpers every day,ensure that each model of machine has stock,could arrange delivery as soon as we receive customer's payment.
(4)BEST PRICE:We could guarantee our price could meeting your budget and establishing long-term cooperative relationships.
3.DELIVERY TIME:
Our normal model all have stock now,could arrange delivery as soon as we receive the payment .
4.WHAT IS THE MOQ?
We could offer customer one set to test our machine quality .
