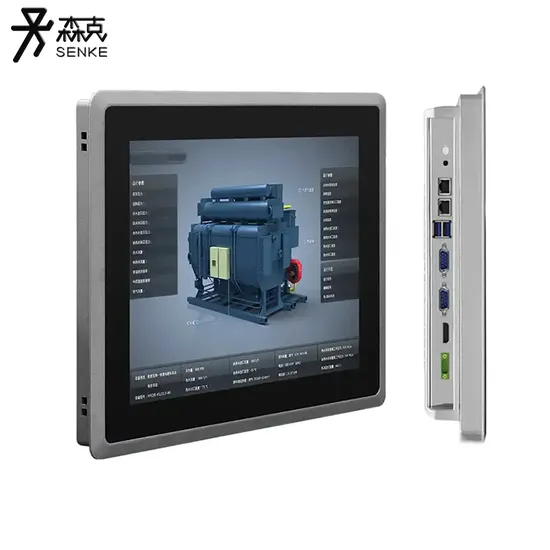

10.4 12.1 15 17 19 Inch Touch Screen Touchscreen All in One Panel PC GPS Windows Linux Andriod Fanless Industrial Embedded PC
Basic Info.
Model NO.
SK-K17DR
Connectivity
Bluetooth, Ethernet, HDMI, USB, VGA, Wi-Fi
Protection Rating
IP65, IP67, IP68
Resolution
1920x1080
Touch Technology
Capacitive Touch
Waterproof
IP65 Waterproof
Size
10.4", 12.1", 15", 17", 19"
Contrast Ratio
900:1
Screen Ratio
4:3
Touch Point
10 Point Touch
Response Time
Less Than 5ms
Heat Dissipasion
Fanless Aluminum Fin Heat Dissipation
Type
Ipc
Touch Screen
Touch Screen
Installation
Wall Mounted, Desktop, Embedded
CPU Type
Windows I3/I5/I7
Transport Package
Foam Carton or Custom Wooden Case
Trademark
Senke
Origin
Guangzhou, China
HS Code
8521909090
Production Capacity
10000
Packaging & Delivery
Package Size
60.00cm * 60.00cm * 60.00cm
Package Gross Weight
10.000kg
Product Description
Product Description| 10.4 12.1 15 17 19 inch Touch screen touchscreen all in one Panel PC gps windows linux Andriod fanless industrial embedded pc |
Product Parameters
| Senke Industrial PC | SK-K10DR | SK-K12DR | SK-K15DR | SK-K17DR | SK-K19DR | |
| Motherboard | Confirmuration | J6412,J1900,J4125,i3-7100U,i5-7200U,i7 | ||||
| Interface | WiFi,3/4G module | 802.11b/g/n(optional), Support3g/4g(optional) | ||||
| HDMI | 1*HDMI output | |||||
| USB | 4*USB3.0 | |||||
| Network | 2*RJ45 with 1000 Base-T | |||||
| Com | com(RS485)*2 | |||||
| Power supply | 1*DC lock phoenix terminal, Support 9-36V | |||||
| Audio output | 1*3.5mmaudio | |||||
| Other | 8*GPIO(optional) | |||||
| Display | Screen type | 10.4 LCD | 12.1 LCD | 15 LCD | 17 LCD | 19 LCD |
| Resolution | 1024*768 | 1024*768 | 1024*768 | 1280*1024 | 1280*1024 | |
| Size(W*H) | 210.4*157.8mm | 245.7*184.3mm | 304.1*228.1 mm | 376.3*301.1mm | 376.3*301.1mm | |
| Contrast ratio | 500:1 | 500:1 | 700:1 | 900:1 | 900:1 | |
| Brightness | 200cdm2 | 200cdm2 | 250cdm2 | 250cdm2 | 250cdm2 | |
| Brightness Optional | 1000cdm2 | 1000cdm2 | 1000cdm2 | 1000cdm2 | 1000cdm2 | |
| Screen ratio | 4:3 | 4:3 | 4:3 | 5:04 | 5:4 | |
| Structure | Front and back cover | Aluminum | ||||
| Craft | Glass frame paste, aluminum die casting | |||||
| Color | Black, grey | |||||
| Heat dissipasion | Fanless aluminum fin heat dissipation | |||||
| Panel indicator light | Power state, hard disk state | |||||
| Whole size | 281*228*56.8mm | 315*254*56.8mm | 304*294*55.3mm | 404*341*56.3mm | 445*375.6*59.3mm | |
| Touch screen | Type | Projected capacitive touch screen | ||||
| Touch point | 10 point touch | |||||
| Physical Resolution | 4096x4096 | |||||
| Response time | <5ms | |||||
| Accuracy | <2.5mm | |||||
| Transparency | ≥90% | |||||
| Protection | The surface is coated with 1:1 PVC protective film | |||||
| Others | Working environment | -20ºC~70ºC; Humidity: 10%~90% | ||||
| Storage environment | Temperature: -40ºC~80ºC; Humidity: 10%~90% | |||||
| Installation ways | Embedded,VESA100*100mm | |||||
| Power consumption | 24W | 25W | 33W | 34W | 37W | |
| Accessories | Manual | User Manual, certificate of qualification, warranty card | ||||
| Bracket | wall mounted bracket, embedded bracket, desktop bracket(optional) | |||||
| Adapter | Power adapter | |||||
