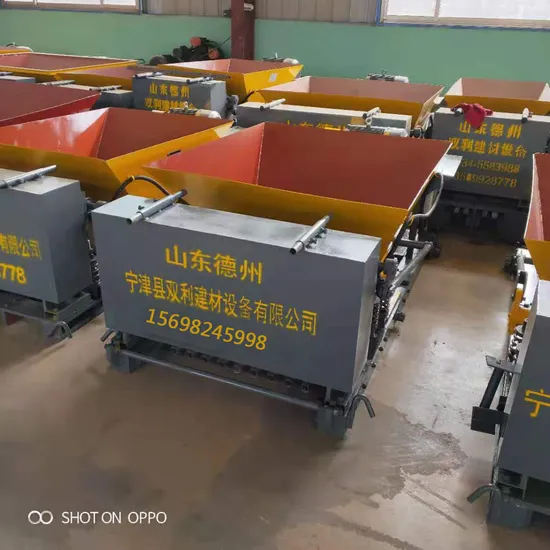

Precast Concrete Wall Panel Machine /Concrete Fence Making Machine

Product Description

Shuangli's new-type wall panel equipment has high production efficiency, about 140 meters per hour, and the raw materials used are stones, sand and cement. Wallboard has high strength and low cost, and can be used for fences, enclosures, farms, simple houses, factories, etc. This concrete slab forming machine works on the concrete flat platform powered by the motor.
The incompact materials are pushed into the forming place by the speed reducing convening and
the slider's repeatedly moving on straight, then the materials push each other to air out.
The continuously working of vibration plate will highly classify the concrete. At the same time,
the reaction of pushing materials by slider will move the whole machine go along with the steel
wire overcoming the frictional resistance. The concrete slab is forming during the process behind
the machine. After maintenance 2 days, it can be cut in to concrete slabs for use.
1. Machine Use Material: cement, sand, stone, and prestressed steel wires used for strong
reinforcement.
2. Production ground: smooth concrete ground, 80-100m long. 10-30m Width
3. Hollow core slabs usage: used as Floor slab and Roof slabs.
4. Advantage: Strong load capacity, large span and fast building.

product process
Production process of the concrete hollow core slab forming machine for precast wall panel,stell wire tensioning, materials preparing, concrete mixing, hollow core slab producting, concrete cutting, stroage.

Our Services
We supply the technical supporting all the time.
We supply one year warranty for whole machine.
We supply free quick wear parts.
We supply low charge continue maintenance when warrenty is expired.
We supply free training to end-users.
Packaging & Shipping
By the sea or by the train. precast concrete extrusion panel machine with high quality was packed in wooden case.


Company Information
Ningjin County Shuangli Building Materials Machinery Factory was founded in 2005.The factory is located at the west of Ningjin County, on the 324 provincial highway.
We have strong technical force and excellent workmanship. The Market Strategy is base on the rural market_oriented. We specialize in the production of precast prestressed concrete molding machine. The factory runs through a strict management system with improved detection methods and perfect quality assurance system. With the increasing effort on R&D ,We have successfully developed more than 100 models of precast molding machines, including Concrete hollow cored slab making machine, concrete lintel machine, concrete purline machine, concrete column making machine, lightweight wall panel machine, and concrete pipe making machine, etc. The thickness of the product can be varied from 30mm to 380mm, widest 1.2m, longest 18m.All our products can meet the country's large-scale construction projects and civil needs.

FAQ
1.When did your company established?
Ling-Feng machine is established in the year 2005.
2. Where is your company situated?
Ling-Feng machine is located in Dezhou city, ShanDong province China.
You can take plain to JiNan airport, we will pick you up in JiNan.
3.What is your payment term?
You can transfer the payment via T/T. We will provide you the bank detail. Generally, 30% prepaid and the rest 70% should be paid before shipping.


welcome to visit our factory
