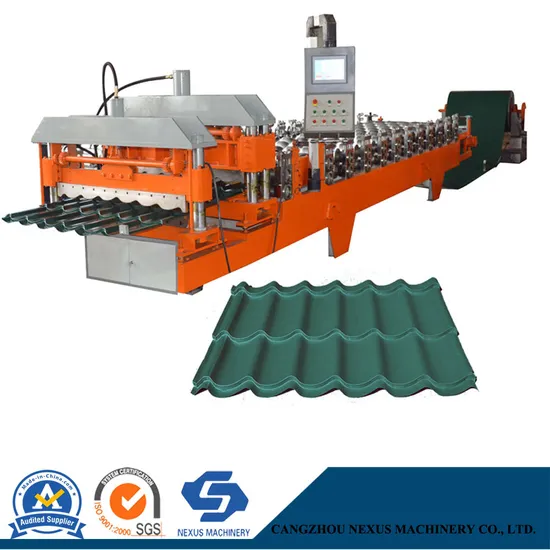

Step Section Roof Tile Making Cold Roll Forming Machine

Product Description

Step Section Roof Tile Making Cold Roll Forming Machine
The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.

1. Processing flow diagram of machine:
Decoiler→ Feeding →Roll forming →Measure length→ Hydraulic stepping→Hydraulic cutting →Output table
2. Profile Drawings for Reference:
3. Technical parameters forStep Section Roof Tile Making Cold Roll Forming Machine:

Item		Parameters
		According to buyer's requirements
Raw material	Type	PPGI, PI, CR , Steel Coil, or equivalent
	Thickness(mm)	Tile profile: 0.3-0.6mm Roofing panel profile: 0.3-0.6mm
	Width of the feeding material	According to buyer's final confirmed profile drawing
	Yield strength(Mpa)	Q195, Q235
Forming speed(m/min)		12-15 (not contain cutting)
Roller material		45 # sheet with chrome coated
Roller driven type		Chain transmission
Control System		PLC (Panasonic) as list in the note
Operation type		Touch screen + button
Hydraulic system pressure( MPa )		12
Hydraulic motor power ( KW )		4
Main motor power(KW)		7.5
Roller Stations		Tile profile: 11 stations Roofing pane profile: 18 stations
Shaft Material and DIA		76mm, material is 45 # forge steel
Roller Material		45# forge steel, coated with chrome
Electric Source		380V, 50HZ,3 phase According to customer's require
Material Of Cutting		Cr12Mov quenching 58-62ºC
Dimension(L*W*H)		Forming Section about 10m*1.6m*1.6m

4. Machine List of Step Section Roof Tile Making Cold Roll Forming Machine:

Hydraulic decoiler ( 5 Tons )	1 unit
Main Roll Forming Machine	1 unit
Cutting Device	1 unit
Electrical System with PLC Control	1 unit
Hydraulic station	2 unit
Out table	2 unit

5. Character of main structure: The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming . It is very easy to install the equipment and suitable for producing in the factory. Low noise with high efficiency. 6. Photos of Step Section Roof Tile Making Cold Roll Forming Machine for Reference:
More Hot-Sale Products for your Choice:
ABOUT US:
Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
FAQ:
1. How long the machine could be made?- Normally speaking, our machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
