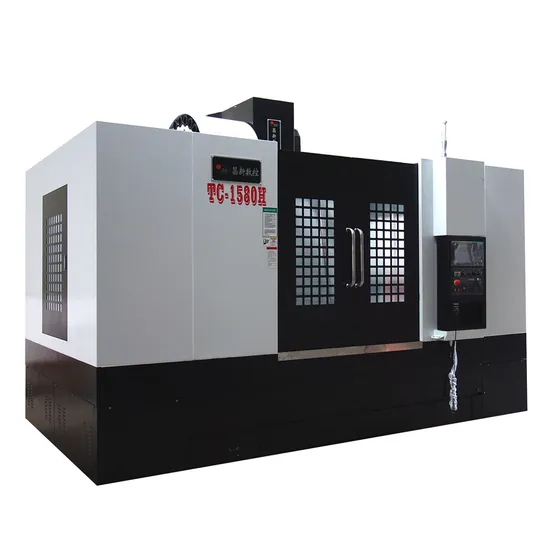

Vmc1580 CNC Machining Center/Good Quality Vmc CNC Milling Machine (TC-1580)
| US$55,474.45-67,153.28 | 1 set (MOQ) |
Basic Info.
Model NO.
TC-1580
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.02~0.03(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE
Condition
New
Transport Package
Wooden Packing
Specification
2600*2240*2350mm
Trademark
Chansin
Origin
China
HS Code
8457101000
Production Capacity
1000sets/Year
Product Description
Vmc1580 CNC Machining Center/Good Quality Vmc CNC Milling Machine (TC-1580)Specifications of TC-1580:
| Machine Body | Chansin Casting three linear guide ways high-strength body |
| Spindle | original import Taiwan WLT / TD, 8000 rpm ,belt connection |
| System | Original Japan imported control system the latest version Mitsubishi M80A |
| Spindle motor | Imported Japan Mitsubishi servo motor 20KW |
| Three-axis motor | Imported Japan Mitsubishi servo motor |
| Automatic lubrication system | pressurized volumetric automatic oiler, automatic balance distribution of lubricants (joint venture Baoteng brand oiler) |
| Head balance system | The body comes with a counterweight balancing system |
| High pressure chip system | high pressure motor, high pressure flushing (joint venture Sinaer brand water pump) |
| Screw | original Taiwan imported Hiwin screw |
| Spindle cooling | plus independent oil cooling system (joint venture Ruike brand oil cooler) |
| Tool Magazine | Taiwan Sanjie arm type with 24 BT40 tools capacity |
| Controller | standard Mitsubishi M80A color display |
| X, Y, Z bearings | standard German FAG or Japan NSK |
| Triaxial roller screw | standard Taiwan Taiwan Hiwin / PMI |
| Spindle Knife cylinder | Standard Taiwan North Kui / Hao Cheng |
| Couplings | Standard Germany BK3 SW*J |
| Wind system combined with solenoid valve (triple) | standard joint venture Ogreut |
| The main electrical accessories | standard Germany Schneider, Merlin Gerin |
| Other air pressure components | standard joint venture Ogreut |
| Circuit breakers, relays | standard Germany Schneider, Merlin Gerin |
| Electric box air fan | standard joint venture FuRuize |
| Transformer | standard joint venture AoHengda |
| Work LED lamp | standard Taiwan Ou Si |
| Hand control electronic hand wheel | standard Taiwan NEMICON |
| Three-axis telescopic shield | standard joint venture Zhenfei |
| Full cover | standard joint venture Jiancheng |
| X/Y/Z-Axis Travel | 1500/800/700mm |
| Distance from Spindle Nose to Table | 170mm-870mm |
| Distance from Spindle Center to Column Guide Rail | 860mm |
| Working Table Size | 1700*800mm |
| Table Max Load | 1500kg |
| T Slot | 6pcs,size:18T,Interval:120mm |
| Main Spindle | Taiwan Tai Da/Royal/Volis |
| Spindle Speed | 8000rpm |
| Spindle Motor Power | 20kw |
| X/Y/Z-Axis Motor Power | 6.0kw/6.0kw/8.5kw |
| Rapid Traverse(X/Y/Z) | 25000/25000mm/25000mm/min |
| Cutting Speed | 12000mm/min |
| Spindle Taper Diameter | BT50 |
| Positioning Accuracy | ±0.005mm |
| Repeat Positioning Accuracy | ±0.003mm |
| Total Electricity Demand | 45kw |
| Machine Size | 4200*3200*3300mm |
| Machine Weight | 12.5ton |
| Accessories | Tool box (1 set) Tool Holder(2 pcs) 6 inch vise and Lock knife seat (1 set) Machine operating manual Operation and programming manual Servo Motor and Controller Manual High pressure spray gun(1 pcs) |
Payment Term:
Payment:40% deposit,the balance will be paid before shipping.
Delivery:
20-30 days after received the deposit payment.
Remarks:
1.Warranty:One year free warranty and life time maintenance.
2.Loading port: Shenzhen/Guangzhou
3.Engineers are available to serve overseas, you are responsible for the air tickets and accommodations expenses. The price above is not including this expenses.
4th/5th rotary table optional:
