Exhaust Ventilating Box Fan Motor AC Single-Phase Electric Moro Copper

Product Description

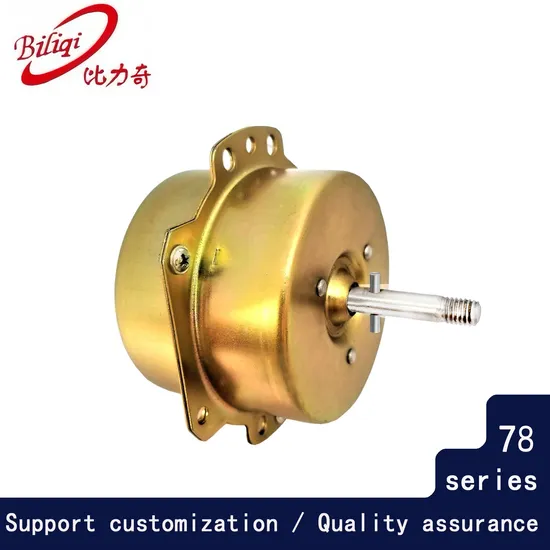

Model BL78 Conventional type fan motor
Adopt automatic production process, each part processing is controlled by computer, computer acceptance, meticulous quality
It has the characteristics of environmental protection, durability, high speed, low power consumption, low temperature rise and so on. The traditional process is still popular, cold-rolled sheet stamping, color zinc or white zinc plating case, beautiful and durable. Pure copper enamelled wire with cold rolled or silicon steel plate, low energy consumption and high efficiency (copper-clad aluminum can be used according to customer requirements). Low noise, high quality oil bearing and ball bearing, quiet and reliable, stand the test of time. It can be used with dental box or synchronous motor. Widely used in all kinds of floor fans or wall fans.
Deeply loved and adopted by the home appliance industry at home and abroad, can be debugged and customized according to the requirements, welcome to inquire
Product test data

220V/50Hz	Fast	Fast (Hot)	Middle	Middle (Hot)	Slow	Slow (Hot)	Remarks
Electric current ( mA )	271	270	256	255	233	232	1)Red is hot data. 2)The temperature rise is 1.06 times of the rated voltage and the test time is 90 minutes.
Power ( W )	60	59.3	56.3	55.7	50.6	49.2
Rotational speed ( RPM)	1243	1251	1079	1052	900	889
Air volume (m/s)	5.0	5.0	4.0	4.0	3.6	3.5
Temperature rise (K )		67		70		74

BLQ motor to achieve automatic production, the use of machine winding, wire drop, wire binding, soldering, acceptance, all controlled by computer, from production to acceptance, strict quality control, meticulous, obvious to all
All kinds of High Speed and High Precision stamping equipment in stamping Workshop,Professional equipment operators ensure the normal operation of the equipment and ensure the quality and stability of the products
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
