Automatic Pnematic Ultrasonic Quilting Machine (CE certificated)

Product Description

Automatic Pnematic Ultrasonic Quilting Machine (CE certificated)
Model: MS-2400 (2400mm)
1. Technical specifications:

Good Description:	Ultrasonic quilting machine
Model:	MS-2400
Voltage Supply:	380V/50Hz (60Hz)/3Phase/4cables
Installed Power:	13KW - (actual power consumption: about 13KW*60%=7.8KW)
Ultrasonic Frequency:	20KHz (15KHz available for option)
Working Speed:	0-13m/min, adjustable depend on quilting thickness.
Quilting Work Width:	2400mm
Pattern Roller Sizes:	2550MMxØ(200-216)MM
Materials Suitable:	polyester, nylon, polyester wadding, and non-woven fabrics.
Usages:	Ultrasonic non-needle & non-thread quilted/laminated materials can be used in bedding, light quilts, sofa clothing & lining, garment clothing & linking, building materials, car seat fabric, soft decorative material, laminated non-woven for medical product, filtering industries and so on.
Packing Volume:	About 18.80M3
Gross Weight:	About 4230.00KGS

2. Basic Equipment:
1) This machine adopts the latest ultrasonic control cabinet with stable and strong power, which is suitable for long operation. There is computer core plate in it; The multi-line ultrasonic protection system guarantees stable operation of mainframe.
2) Structure of whole machine: (1). Embossing compound mainframe; (2). Ultrasonic control cabinet; (3). Finished products rewinding machine; (4). Bracket for putting materials.
3. Characteristic:
1) Without needlework that omits the bother of replacing line; The product is beautiful;
2) It has better outlook that is suitable for times.
3) It can replace pattern at random according to request.
4) It has high stitching capacity with high efficiency.
4. Applied Example:
Producing kinds of fiber textile, artificial leather, spraying rubber cotton, non-woven fabrics or the compound of needle-punched cotton; It can design pattern at random; The lining production of costume, bedspread, pillow, sofa and the production of inner decoration.

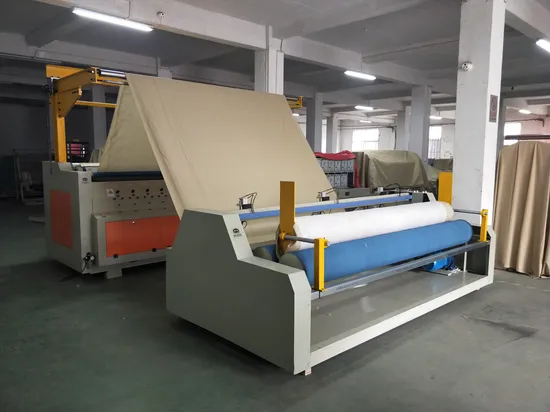

5. Machine and sample pictures:
