Joston 50L 100L 200L 500L Propeller Mixing Preparation Tank

Product Description

Detailed Photos
Product Description

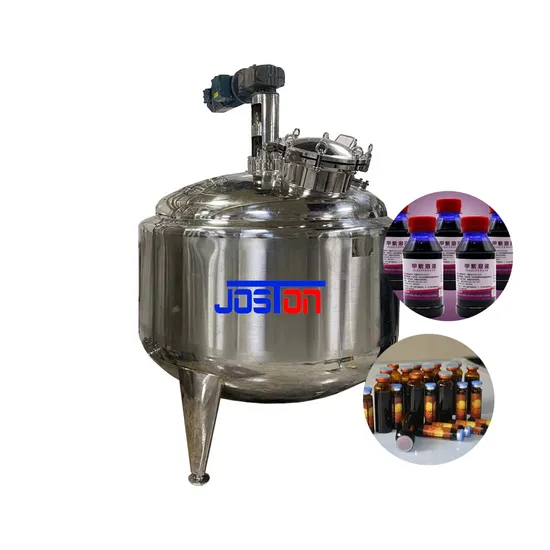

Stainless Steel SS304 SS316L Heating Mixing Tank is mainly used for the preparation ,emulsifying and homogenizer the suspension product ,oil phase and water phase material dissolv solution which is widely used in the sterile drugs,biological products,oral liquid ,eye drop ,syrup solution in pharmaceutical fields.
Stainless Steel SS304 SS316L mainly inclduing the following units:
1) manufacturing tank ( mixing tank ) : which can be single layer ,steam jacket or electrical heating jacket with insulation layer
2) bottom mounted magnetic agitator and top mounted high shear emulsifying agitator
3)control panel system : PLC/HMI control panel or common button control panel .
the advantage of PLC/HMI control system for solution preparation system:
1. Adopt aseptic design, no dead area, minimize residue.
2. PLC control of touch products, one key operation, direct and clear process flow chart, automatic liquid distribution and material transmission in the whole process; simple, convenient and user-friendly.
3. Equipped with automatic CIP online cleaning system and sip online sterilization system, the system can automatically online SIP and CIP, reducing production cost and old strength.
4. Automatic online abbreviation for filter integrity.
5. Automatic online real-time detection of weight and constant volume.
6. Automatic real-time abbreviation, recording and printing of all relevant data. Product Parameters Technology data for Stainless Steel SS304 SS316L :

Model Item	PYG-50	PYG-100	PYG-500	PYG-1000	PYG-6000
Tank work volume:L	50	100	500	1000	6000
Motor power:Kw	0.18	0.37	1.1	2.2	5.5
Agitator speed :RPM	0-350 ( for the gear motor connection type ),0-600 (for direct motor connection type )
Inside shell pressure MPa	-0.1/0.3 (can be done as client's URS)
Jacket pressure MPa	0.3 (can be done as client's URS)

Remark :above model just for reference ,we can do according to client's URS Company Profile
FAQ
Q: Why did we choose "JOSTON "?
A: 1. We are manufacturer who can provide you the favorable price.
2. We decrease the consumption cost of the product in the running.
3. We improve research personnel's ability to deliver a creative design;
4. We use leading technologies in our product development and innovation, thereby increasing the competitive advantage of products.
Q: Do you supply installation equipment overseas?
A: Yes, we offer comprehensive installation and training services to ensure the smooth operation of our equipment. Our technical team can assist with on-site installation, and we provide detailed training for your staff on equipment use and maintenance.
SERVICE
We have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)
