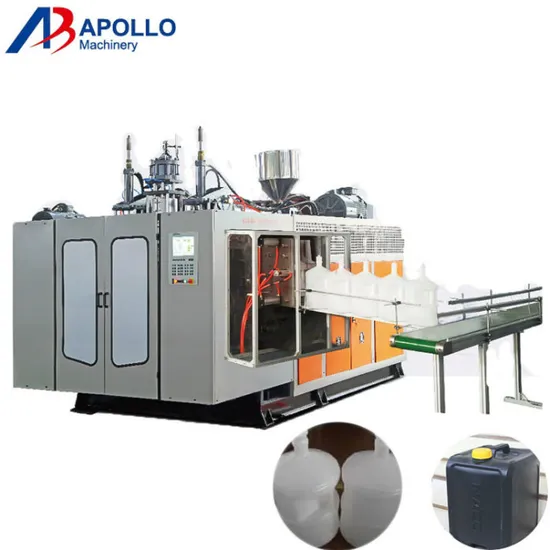

10L Oil Drum Extrusion Blow Molding Machine
| US$40,000.00-68,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ABLB90II
Raw Material
HDPE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Online Service
Product
10L Oil Drum Extrusion Blow Molding Machine
Screw Diameter
90mm
Station
Double Station
Parison Controller
Available
Auto-Deflashing Unit
Available
Transport Package
Film Packaging
Specification
CE/SGS
Trademark
Apollo
Origin
Jiangsu, Zhangjiagang
HS Code
8477301000
Production Capacity
150-200PCS/H
Product Description
Basic installation including Die head: Center-feed die headExtrusion system: Adopt world-famous brand automatic temperature controlling device. Drive the screw with electromagnetism motor reducer to realize stepless regulating.
Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment well
Blowing device: with upper blowing type
Hydraulic system: The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circle.
Electric controlling system: Adopt programmable controller made in Mitisubishi , Japan. Every electric component is of world-famous brand.
Unit price (including one series of spare parts)
Unite price (including one series of spare parts for wearing parts)
| Max. Product volume | 15 liters |
| Out put capacity | 160pc/h |
| Screw diameter | 90mm |
| Screw L/D ratio | 24L/D |
| Screw drive power | 45KW |
| Screw heating capacity | 8KW |
| No.of heating zone | 4 zones |
| Output of HDPE | 128KG/H |
| Oil pump drive power | 11KW |
| Clamping force | 108KN |
| Max.size of mold | 240-660mm |
| Mold stroke | 530X 550mm |
| Max.die diameter | 180mm |
| Blowing pressure | 0.6mpa |
| Air Volume | 0.9M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 90L/MIN |
| Size of Machine | 4.2x3x3.2m |
| Weight of machine | 11ton |
