Thermos Pails Bottle Blow Molding Machine
| US$66,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
ABLD90 machine
Raw Material
PE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
12 Months
Application
Bottle
Max. Product Volume
60L
Blow Moulding Type
Extrusion Blow Moulding
Place of Origin
Jiangsu, China (Mainland)
Brand Name
Apollo
Certificate
CE
Transport Package
Film Packing
Specification
ISO9001
Trademark
APOLLO
Origin
China
HS Code
8477301000
Production Capacity
4 Set/Sets Per Month
Product Description

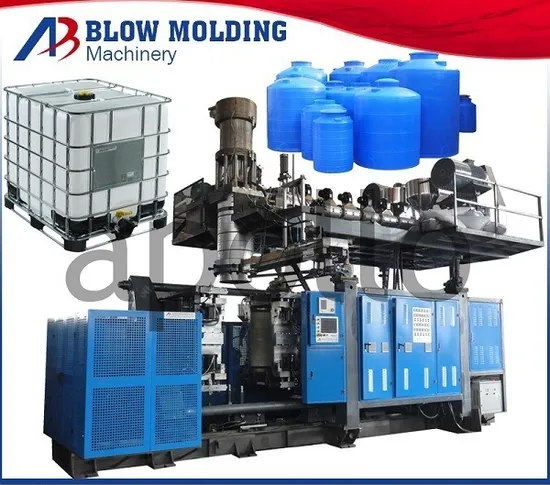

Tanks Extrusion Blow Molding Machine 60L:ABLD90 Tanks Extrusion Blow Molding Machine is suitable for various kinds of plastic bottles in all shapes from 13L to 60L. It is widely used to produce tool boxes and big volume bucket, plastic board and related containers. Equipment with sevo parion control system can control the thickness of the product precision to 1/1000mm. It can also meet the requirement of different thickness of plastic.
Easy to operate, saved labor cost, saved enery, high efficiency to promote your productivity
You can regain the machine cost with 1-2 years
The machine looks neat and nice
Perfect function with economic investment.
Max. Product volume | 50 liters |
Dry cycle | 450pc/h |
Screw diameter | 90mm |
Screw L/D ratio | 25 L/D |
Screw drive power | 37 KW |
Screw heating capacity | 18 KW |
No.of heating zone | 4 zones |
Output of HDPE | 130 KG/H |
Oil pump drive power | 30 KW |
Clamping force | 260 KN |
Max.size of mold | 450-1000mm |
Mold stroke | 700X950mm |
Max.die diameter | 340mm |
Die heating power | 7.6 KW |
Die heating segments | 4 zones |
Blowing pressure | 0.8mpa |
Air volume | 1.0 M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 90 L/MIN |
