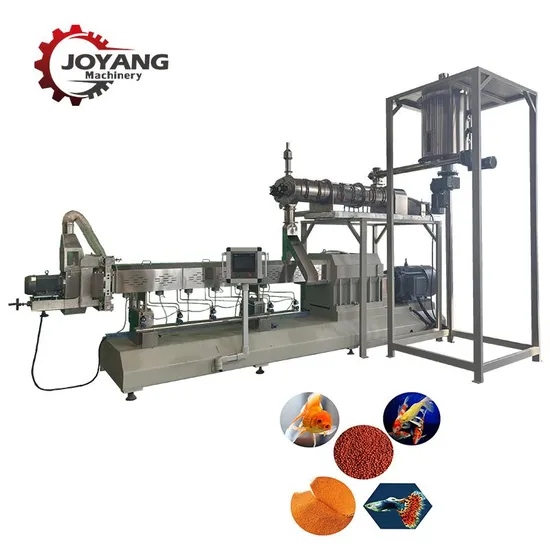

Shrimp Food Tilapia Catfish Feed Processing Line Turtle Food Fish Feed Extruder

Product Description

Shrimp Food Tilapia Catfish Feed Processing Line Turtle Food Fish Feed Extruder
Product Description
Product Description
The floating fish feed made by the extruder can suspend the fish on the water surface for a long time. There is no need to set up a special feeding platform when feeding, but only fixed-point feeding. Because the feed can float on the water, you can see the fish eating the feed intuitively, and adjust the amount of feed-in time. Due to the high temperature and high-pressure processing conditions, the starch in the feed is matured and the fat is more conducive to digestion and absorption. All floating fish feeds have higher utilization rates than traditional fish feeds. Floating fish feed will not disperse in the water for a long time. The floating time of high-quality floating fish feed can be as long as 12 hours, and it is easy to observe and control on feeding, reducing or avoiding powder, remaining residual bait, etc. on the water body pollution.
Product Parameters
Product Parameters

Model	Installed Power	Power Consumption	Production Capacity	Dimension
JY-65	76kw	23kw	140 - 160kg/h	17*2*2.5m
JY-70	105kw	75kw	240 - 260kg/h	22*2*2.5m
JY-85	178kw	125kw	500kg/h	26*2*3.5m
JY-90	215kw	165kw	1000 - 1200kg/h	40*2.4*4m
JY-95	256kw	195kw	1000 - 1500kg/h	42*2.8*4m

Product Detail
Product Detail
Machine List
Mixer→Screw Conveyor→Extruder→Air Conveyor→Dryer→Hoister→Oil Sprayer→Twin Rollers With Flavoring Machine→Cooling Conveyor

Mixer	This machine can mix all the different kinds of power materials with water. Due to the high speed of mixing braches 580Rpm, the different materials can be mixed evenly with water and some other liquid material.
Extruder	This machine is used to puff or cook the material via high temp and high pressure. With an automatic temp controlling system and automatic speed control system, you will get different food based on different crafts. The shape of the food can also be controlled by different molds.
Dryer	The multi-layer dryer is with a compact design that can make the food be well dried in a limited space. We can adjust the number of layers and lengths depending on the output of the oven. It is a food standard stainless steel belt. The temp of the dryer and the drying time can both be controlled which can make sure that the food will be fully dried. We can also provide a gas dryer, diesel dryer, steam dryer, or even a double energy dryer.
Hoister With Flavor	The hoister is used to elevate the food into the next machine with flavor. It is with food standard rubber belt. The belt is with both horizontal vertical edges can make sure is no leaking.
Oil Spray	This machine is used to spray oil and another liquid flavor on snacks food or feed. There is a heating pipe inside the drum which can make the oil be liquid even in wintertime.
Twin Rollers With Flavoring Machine	This machine is used to flavor the food continuously. It is fully automatic. It is stainless steel.
Cooling Conveyor	There are totally two functions for this machine. Cooling and conveying. Generally, there are fans over the stainless belt. It can also take the food from one workshop to another.

Customer & Service
Customer & Service
We exported the machines to many countries all around the world, such as Italy, Germany, Russia, Turkey, Australia, Indonesia, India, etc. Almost all the customers speak highly of our machines and service, and they continue to buy from us again and again.
1. One-year complete warranty.
2. Free consultation service before during and after-sales.
3. Provide basic production techniques and formulas.
4. Overseas installation and training of equipment maintenance and operating personally.
5. Debugging and inspecting of equipment until everything is functional before leaving the factory.
Company Information
Company Information
Shandong Joyang Machinery Co., Ltd. is a professional supplier of industrial machines. Our company motto is: "Service and quality are equally important". We are located in Jinan, the Capital of Shandong Province. Shandong Joyang Machinery Co., Ltd. is vested with many staffs with many years of experience in various applications of machines.
Our main products include snacks making machine, pet food-making machine, fish feed making machine, soya protein making machine. All the machines can be customized our professional engineers will supply the most suitable solution to different customers to meet their various demands. We exported the machines to many countries all around the world, such as Italy, Germany, Russia, Turkey, Australia, Indonesia, India, etc. Almost all the customers speak highly of our machines and service, and they continue to buy from us again and again.
Whatever machine you need from China, contact Shandong Joyang Machinery Co., Ltd., please. We will supply you with high-quality machines with the best solution based on our strong techniques and rich experience
FAQ
FAQ
Q: How long is your guarantee time?
A: One year after commissioning.

Q: How is the installation?
A: We will dispatch our technicians to your factory to guide your installation and commissioning work and train your operator.

Q: If we show you our layout of the factory, can you help to design the whole process line?
A: Of course, our experienced engineers and technical employee can help you to arrange the layout and installation of the whole production line based on your real situation.

Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock, or it is 20-25 days if the goods are not in stock, it is according to quantity.

Q: Will you help us if we accrue any problems in the future production?
A: Yes, we will always be at your service. You can contact me via mobile, WhatsApp, Skype, Viber, WeChat, and so on. I will help solve your problems as soon as possible.
