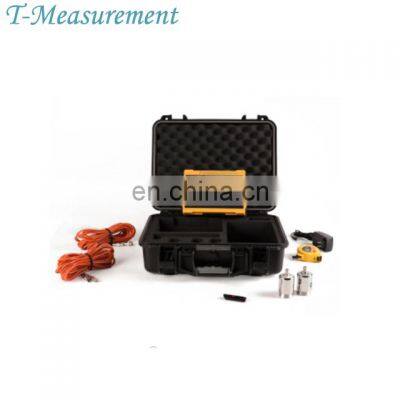

Taijia ZBL-U5100 ULTRASONIC CONCRETE DETECTOR, PULSE TESTER PORTABLE ULTRASOUND MACHINE FOR SALE UPV TEST ON CONCRETE

Product Description

Product Description
Product DescriptionFeatures of ZBL-U5100 ultrasonic detector pulse velocity tester1. During the test, the test result is available and the graphic distribution of abnormal points in each profile is shown at anytime. Meanwhile, wave train figure, curve graph and data list of each profile may be shown;2. During the test, sampling delay and amplification factor may be adjusted at any time;3. With high definition LCD screen, waveform, wave speed and amplitude of multiple tested profiles may be clearly observed, andthe quality of whole pile in the test is very clear;4. It adopts touch screen and user-friendly interface, which is simply, easy to learn and convenient to operate;5. With high-capacity SD card, there is no need to worry about the storage space of test data;6. Built-in high-performance and capacity lithium battery may satisfy fieldwork for long time;7. Various USB ports may be used for data transmission or software update within the instrument;8. Test data of the same project is saved under the folder created with the title of the project for easy and reliable management.SpecificationModelZBL-U5100 ultrasonic detector pulse velocity testerControl ModeInternal A8 Industrial control boardData storageInternalSignal collecting modeAutomatic continuous collectionTriggersignalAcoustic transit time accuracy0.025μsReceiver sensitivity≤10μvData transmissionUSB,MiniUsb,Wi-Fi,BluetoothScreen5.7inch,high brightness TFT LCD screenOperation ModeTouch screen and buttonChannels1 emitter+1 receiverSampling interval0.025μs~1638.4μsAcoustic transit time range±1677.7msAmplifier bandwidth3~450kHzSize(mm)210×149×601. “Pile integrity test”: test the integrity of foundation pile according to ultrasonic transmission rule and it can detect theintegrity of long continuous wall;2. “Concrete strength test” : using the ultrasonic-rebound combined method to test the compressive strength of concretestructures; 3. “Concrete defect or cavity test”: test the concrete flaw by ultrasonic transmission rule;4. “Concrete crack depth test” :test the crack depth of concrete by adopting horizontal ultrasonic test method;Packing & DeliveryRelated productsZBL-R630A Rebar locator ZBL-R630A is used to test the location of rebar in concrete, the thickness of the protective layer, and the diameter,orientationand distribution of rebar by using an electromagnetic induction method. ZBL-R800 Multifunction rebar scannerZBL-R800 is a multi-functional integrated rebar detector which can be used for testing the thickness of protective layers,measuring the diameter, location, and distribution of rebar as well as for detecting the corrosion content of a rebar.TEM912 Digital concrete test hammerTEM912 Series DIGITAL TEST HAMMER automatically Record, Save,Calculate and Processing data.Contact UsTrade terms 1. 18 Month's Warranty. 2. Delivery time:3-7 working days after payments received 3. MOQ:1 set. 4. Service expresscompany:TNT/DHL/FedEX. 5. We accept T/T, Western Union, PayPal & Secure Payment. NO.5 Shanshui Yuan, High-tech Industrial ZoneDalian, China 116033 E-mail:commercial at TEL:86-411-39685079 WhatsApp/WeChat:+86 18842866177web:/
