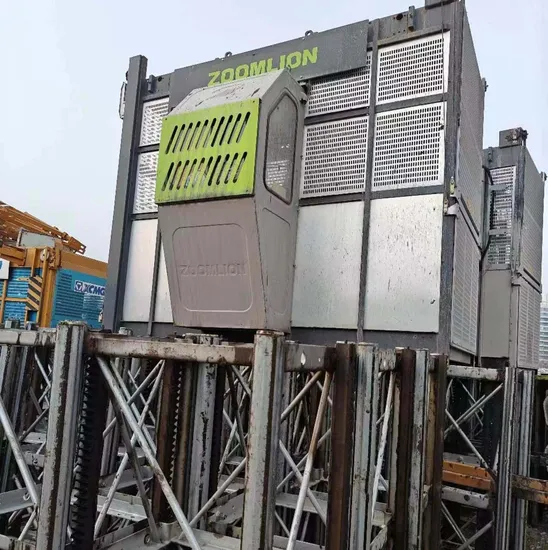

Used Zoomlion Elevator Building Hoist and Lifting Equipment

Product Description

Model number Argument	SC200EB (High cage)	SC200EB (Dwarf cage)	remark
Configuration code	BWM-4S
Rated deadweight(kg)	2,000 or 24 people
Rated installed load(kg)	1000
Rated speed(m/min)	0~40
Maximum lifting height(m)	500
Cage space (length × width × height)	3.2×1.5×2.5(m)	3.2×1.5×2.2(m)
Supply voltage(V)	380±5% 50Hz
Motor power(kW)	2×13
Power consumption(kVA)	39
Rated working current(A)	2×27
Standard pitch weight(kg)	145		Wall thickness 4.5mm
	160		Wall thickness 6.0mm
	180		Wall thickness 8.0mm
	195		Wall thicknes10.0mm
Hang the cage self weight(kg)	2000	1975	Including drive system, control system weight
Safety device type number	SAJ40-1.2A

Model number Argument	SC200/200EB (High cage)	SC200/200EB (Dwarf cage)	remark
Configuration code	BWM-4S
Rated deadweight(kg)	2 x 2000 or 2 x 24 people
Rated installed load(kg)	2×1000
Rated speed(m/min)	0~40
Maximum lifting height(m)	500
Cage space (length × width × height)	3.2×1.5×2.5(m)	3.2×1.5×2.2(m)
Supply voltage(V)	380±5% 50Hz
Motor power(kW)	2×2×13
Power consumption(kVA)	2×39
Rated working current(A)	2×2×27
Standard pitch weight(kg)	145		Wall thickness 4.5mm
	160		Wall thickness 6.0mm
	180		Wall thickness 8.0mm
	195		Wall thicknes10.0mm
Hang the cage self weight(kg)	2000	1975	Including drive system, control system weight
Safety device type number	SAJ40-1.2A

Product Overview Product Name: Zoomlion Frequency Conversion Construction Elevator (2021 Model) Condition: Second-hand/Used Key Specifications Year of Manufacture: 2021 Technology: Features advanced frequency conversion technology. This allows for smoother acceleration and deceleration, enhancing the safety and comfort during operation. Capacity: The elevator is designed to carry a significant load, suitable for transporting both personnel and materials to various heights on a construction site. Speed Control: Equipped with variable speed control for efficient and energy-saving operations. This feature also reduces wear and tear on mechanical components, extending the elevator's lifespan. Safety Features: Includes multiple safety systems such as overload sensors, emergency stop mechanisms, and fail-safe brakes. These features are crucial for ensuring the safety of workers and materials. Control System: Comes with a user-friendly control panel, making it easy to operate. The system may include features like fault diagnosis, which helps in quick troubleshooting. Condition and Maintenance General Condition: The elevator is 90% new, indicating minimal wear and only light usage since its manufacture in 2021. Maintenance Record: Regularly maintained as per the manufacturer's guidelines, ensuring optimal performance and reliability. Previous Usage: Ideally, it has been used in environments that adhere to safety and operational standards, which further assures its good condition. Additional Features Installation and Dismantling: Designed for easy installation and dismantling, which is cost-effective and time-saving for construction projects. Energy Efficiency: The frequency conversion technology not only provides smooth operation but also contributes to energy efficiency, reducing operating costs. Customization: Depending on the specific model, it may offer options for customization in terms of size, capacity, and possibly even branding. Ideal Use Cases Construction Sites: Particularly suited for high-rise building construction, infrastructure projects, and large industrial constructions. Material and Personnel Transport: Can efficiently transport construction materials, equipment, and personnel to various levels of a construction site. Conclusion This 2021-model Zoomlion Frequency Conversion Construction Elevator presents an excellent opportunity for construction projects that require reliable, efficient, and safe vertical transportation solutions. Its advanced features, combined with its near-new condition, make it a valuable asset for a wide range of construction needs.
