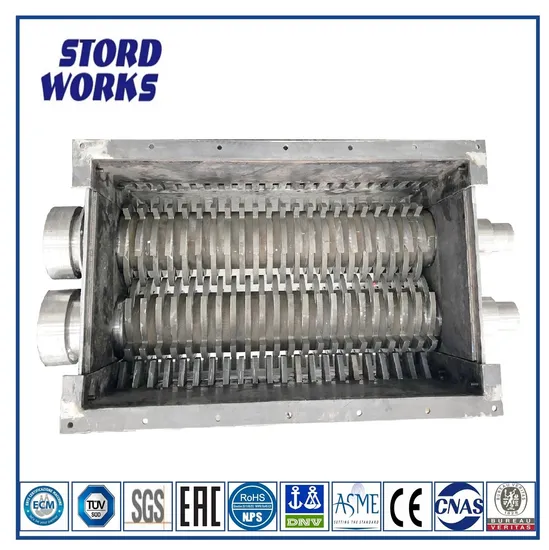

Multi- Shaft Crusher Meat Bone Broken Machine

Product Description

Multi- shaft Crusher Meat Bone broken Machine Product Description
Crusher is used for crushing the whole animal carcasses, and various internal organs and bones from slaughterhouses. Generally usecrusher to reduce the size of the material and then delivery by screw conveyor or vane pump before cooking. The motor model andthe speed of the crushing shaft can be adjusted according to the production demand, the operation cost is low.The design of quickrepair and replacement parts makes the crusher more efficient.
Main Features1) low speed axis can handle metals in raw materials.2) equipped with electronic speed monitoring, the motor can be stopped immediately when large matter enter the crusher.3) the spindle is equipped with heavy roller bearings, which can resist large radial and axial impact.4) standard parts are used for driving from motor to shaft.5) localized structures can replace parts in a short time.6)the material inlet and outlet are equipped with standard removable butt flanges.
Product Parameters

Model	PS-5	PS-8	PS-10	PS-12	PS-15	PS-20
(mm) Box dimension	300*600	400*800	500*1000	600*1200	820*1200	1000*1300
(mm) Diameter of blade	Φ180	Φ220	Φ280	Φ350	Φ400	Φ550
Screw speed(r.p.m)	1040	10-40	10-40	10-40	10-40	10-40
(kw) Motor power	11	22	37	45	75	90
(t/h) Capacity	1-5	5-8	8-10	10-12	12-15	15-20

Application
Bone crushing machine is suitable for dry, fresh cow big bones, pig bones, sheep bones, donkey bones, big bones and other animal bones and fish bones.
Bones obtained during slaughter were cleaned, boiled in water and dried for several months. After that, they were suitable for crushing with the special machine into a relatively dry gritty powder which was used as fertilizer. Packaging & Shipping
1) Carefully check the quantity and quality of equipment before packing. 2) Good packed by plastic wrap. 3) Fittings and spare parts are packed in wooden pallet . 4) Suitable for export transport and sea freight 5) Add labels and shipping mark.

Company Profile
JIANGSU STORD WORKS LTD.Located in Fangqiao National Machinery Industrial Park, at the Taihu Lake, Yixing City, Jiangsu, China, which is home to more than 180 employees , covers an area of 25000 M2 and has more than 70 various manufacturing and testing devices, with the maximum lifting capacity of 100T and the maximum plate rolling capacity of 120mm.
StordWorks has the specialized drying machine production workshop and advanced machining centers. We also have various international pressure vessels certification and abundant experiences in equipment manufacturing, such as National standard pressure vessel certification, American ASME certification, Norske Veritas DNV certification and EU PED certification.
Jiangsu StordWorks adheres to the business philosophy of "Focusing on Professionalism & Quality First", and the service conceptof "Customer-orientation and Exceeding Customer Satisfaction". By means of our excellent quality and perfect service, JiagnsuStord Works Ltd. sincerely looks forward to cooperating with you!

Production Facility
