Good Price Automatic Toilet Tissue Paper Rolls Cutting Machine
| US$27,800.00-29,800.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
XY-AI-280
Condition
New
Certification
CE
Automation
Automatic
Suitable for
Toilet Tissue Paper
Transport Package
Wooden Pallets or Wooden Boxes
Trademark
XINYUN
Origin
China
Product Description

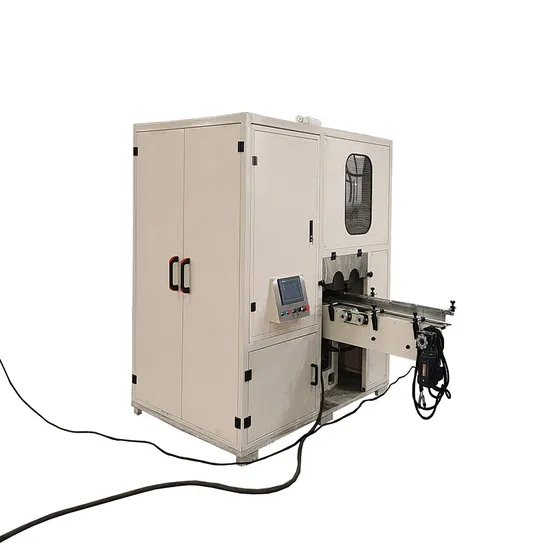

XY-AI-280 Good Price Automatic Toilet Tissue Paper Rolls Cutting MachineXY-AI-280 Double Channel Log Saw Machine is used for cutting the toilet paper roll and kitchen towel paper roll, it's with high automation and efficient. Adopts advanced servo driving system, frequency conversion speed regulating, PLC control and touching screen operation.
Function and Features:
1. Automatic blade grinding system, quickly setting parameter on PLC..
2. Sharpen wheel can grinding according to the wear degree.
3. Two Logs are feeding automatically, cutting then pushing.
4. Shortcuts can be kicked off from the quality products.
5. Equipped with two sets of clamping channels, easy to change.
Main Technical Parameters:
| Model | XY-AI-280 Log Saw Cutting Machine(Double Channel) |
| Jumbo Roll Width | 1750mm (Other size can be specified) |
| Jumbo Roll Diameter | Φ95~φ105mm…125-135mm (Other size can be specified) max. 140mm |
| Design Speed | 150cuts/min |
| Stable Speed | 100cuts/min |
| Grinding System | Pneumatic Sharpen, grinding time can be set |
| Driving System | Delta Servo Motor |
| Power | 11KW |
| Overall Dimension | 6500*2500*2000mm(Other size depends on model and configuration) |
| Blade Diameter | φ610*4.7mm |
| Voltage | 380V 50HZ |
| Weight | About 4.5T |
